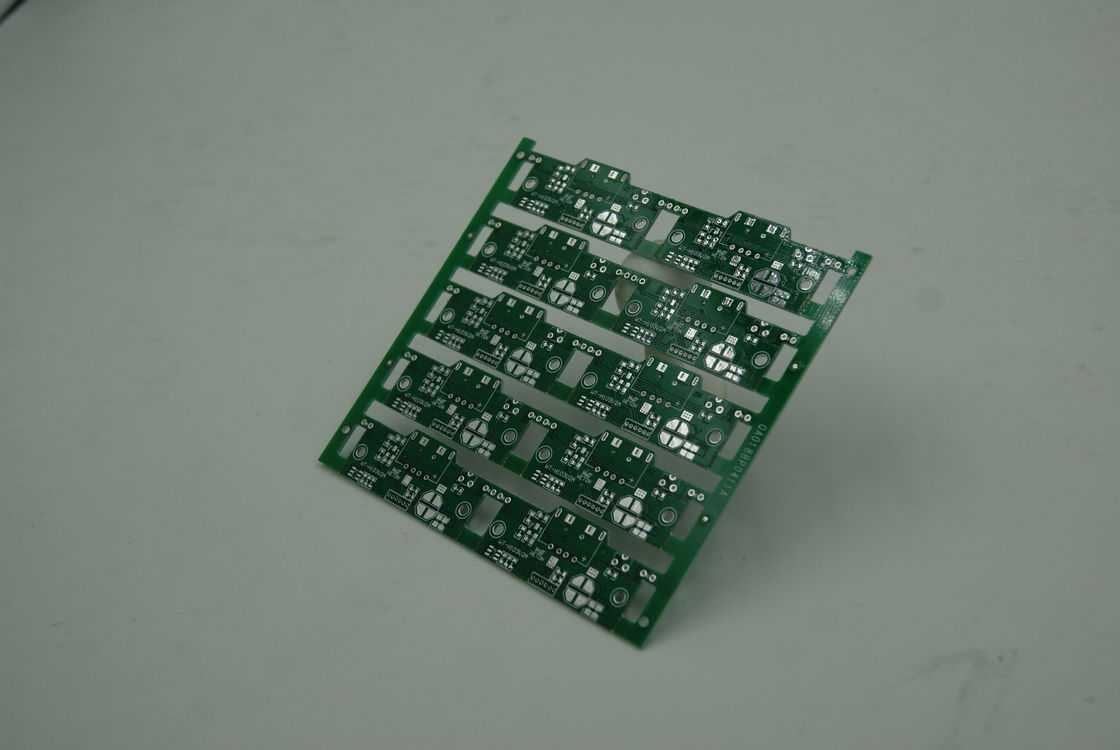

OEM FR-4 Double Sided PCB White/Black/Yellow Silkscreen Design

OEM FR-4 Double Sided PCB White/Black/Yellow Silkscreen Design

Yellow Silkscreen Fr4 Double Sided PCB

OEM Fr4 Double Sided PCB

OEM double sided circuit board

Contact Us
Request A Quote
Product Details
Two Layer PCB
Conductor Space:
3 Mil
Silkscreen Color:
Copper Weight:
Pcb Thickness:
Raw Material:
Solder Resist Color:
Payment & Shipping Terms
Contact Us
Product Description

Dual Sided FR-4 PCB Copper Weight White/Black/Yellow Silkscreen Design

Product Description:

The Double-Sided PCB, also known as the Two-Layer PCB, is an essential component in the realm of electronic devices, offering an intermediate level of complexity between single-sided and multi-layered boards. This product is specifically designed to cater to applications that require a moderate amount of electrical connectivity and can benefit from using both sides of the circuit board. The Double-Sided PCB is not only versatile but also provides a cost-effective solution for a wide range of electronic projects.

One of the most distinctive features of our Double-Sided PCB is its variety of available colors. Clients can choose from the classic green, the sleek blue, or the vibrant yellow for their board, which allows for a degree of personalization and visual coding for different projects. The color of the PCB can play a crucial role in the manufacturing and testing phases, ensuring that trace paths are clearly visible and that the board meets the aesthetic requirements of the final product.

The refinement of the Double-Sided Printed Board is further enhanced by the silkscreen color options available. Customers can select from white, black, or yellow silkscreen colors, which are applied to label components, test points, and provide other critical information on the board. The contrasting silkscreen ensures that markings are legible and that assembly and inspection processes are streamlined, leading to increased efficiency in both manufacturing and servicing of the electronic device.

At the core of the Two Layer PCB is its structure. The Double-Sided PCB is built with conductive copper layers on both sides of the board. Each layer is separated by a substrate material, and both sides are connected through holes that allow electronic components to be mounted on one side and electrically connected to components on the other. This dual connectivity significantly expands the circuit density and complexity that can be achieved compared to a single-sided board.

The 1.2m double-sided pcb option within our product line is particularly noteworthy. The extended length of 1.2 meters makes it suitable for larger scale applications and devices that require more space for component placement and routing. This feature makes it an excellent choice for industrial controls, LED lighting systems, power supplies, and other sizable electronic assemblies that require the reliability and space that a 1.2m PCB provides.

The Dual-Sided Printed Wiring Board is not just about size; it's also about durability and performance. The manufacturing process of these boards includes a careful plating technique that ensures strong via connections between the two sides, contributing to the overall robustness and longevity of the PCB. Furthermore, the materials used in the construction of the PCB are chosen for their thermal and mechanical stability, ensuring that the board performs reliably under various environmental conditions.

Our Double-Sided PCB is not only designed for performance but also for ease of use. It is compatible with most through-hole and surface mount technologies, making it highly adaptable to various assembly processes. The use of through-hole components on this type of board can be particularly beneficial for applications that require stronger bond strengths and enhanced durability.

In summary, the Double-Sided PCB we offer is a highly adaptable and reliable solution for those seeking a two-layered board. Its selection of board and silkscreen colors, coupled with its robust construction and compatibility with various assembly techniques, makes it an ideal choice for a multitude of electronic applications. Whether you are looking for a 1.2m double-sided pcb for a large project or a standard-sized Dual-Sided Printed Wiring Board for more compact designs, our product ensures quality performance and customer satisfaction.



  • Product Name: Extra long double-sided pcb
  • Shipping Options: DHL, UPS, EMS, TNT, FedEx, Express Courier, Sea Transport
  • Number of Layers: Double (Two-Sided Circuit Board)
  • Minimum Hole Diameter: 0.075 mm
  • Silkscreen Colors Available: White, Black, Yellow
  • PCB Color Options: Green, Blue, Yellow
  • Size Capability: Up to 1.5m double-sided pcb

Technical Parameters:

Attribute Details
Raw Material FR-4
Conductor Space 3 Mil
Layers Double
Surface Finish HASL, ENIG, Immersion Tin, Immersion Silver, Gold Finger, OSP
Silkscreen Color White, Black, Yellow
Color Green, Blue, Yellow
Keyword Two Layer PCB
Feature 100% E-test
Copper Weight 1-6oz
Min Hole Dia 0.075 mm


The 1.5m double-sided PCB, also known as a Twin Layer PCB or Bi-Layer PCB, stands as a versatile and widely used component in various electronic applications. With a standard PCB thickness of 1.6mm, these double-sided PCBs offer robustness and durability for a range of electronic devices. The surface treatment of Immersion Gold not only provides a reliable surface for soldering but also ensures a lower contact resistance and a high level of protection against oxidation. This level of treatment is crucial for applications where long-term reliability and performance are paramount.

The use of FR-4 as the raw material for these PCBs indicates a high level of mechanical and thermal stability. FR-4 material is well-known for its excellent flame retardancy, which makes the 1.5m double-sided PCB an ideal choice for applications where safety is a concern. The PCB's solder resist color is green, a standard in the industry, which aids in the visual inspection process and provides a contrast against the white, black, or yellow silkscreen used to label the various components and test points on the board.

Typical applications for the 1.5m double-sided PCB span across consumer electronics, where the boards can be found in devices such as smartphones, tablets, and laptops. They also play a crucial role in industrial settings, being part of the control systems for machinery or embedded within monitoring equipment. The medical industry benefits from the high reliability of these Twin Layer PCBs in devices such as monitors and imaging equipment. Additionally, automotive applications make extensive use of Bi-Layer PCBs due to their ability to withstand harsh environments and vibration.

Furthermore, the double-sided nature of these PCBs makes them a desirable choice for applications where space is limited. The ability to route traces on both sides of the PCB allows for more complex circuits in a smaller footprint. This feature is crucial for modern, miniaturized electronic products that demand compact yet powerful electronic solutions. The 1.5m double-sided PCB, with its combination of robustness, high-quality surface treatment, and versatile raw material, is a cornerstone in the development of these sophisticated electronic systems.



Our Double Sided PCB product offers a range of Product Customization Services to suit your specific project needs. Choose from a variety of silkscreen colors including White, Black, and Yellow to achieve the perfect look for your Two-Sided Circuit Board.

With a standard PCB thickness of 1.6mm, our boards provide a robust platform for your electronics. We also ensure precise Conductor Space with a minimal width of 3 Mil for high-density 1.5m double-sided pcb designs.

Our Dual Layer PCBs come with a selection of Surface Finishes to enhance solderability and protect against oxidation. Options include HASL, ENIG, Immersion Tin, Immersion Silver, Gold Finger, and OSP to meet the requirements of various applications.

Furthermore, we are capable of drilling with a Min Hole Dia of 0.075 Mm, enabling fine-pitch components to be used on your PCB design, ensuring both functionality and reliability in your electronic devices.
