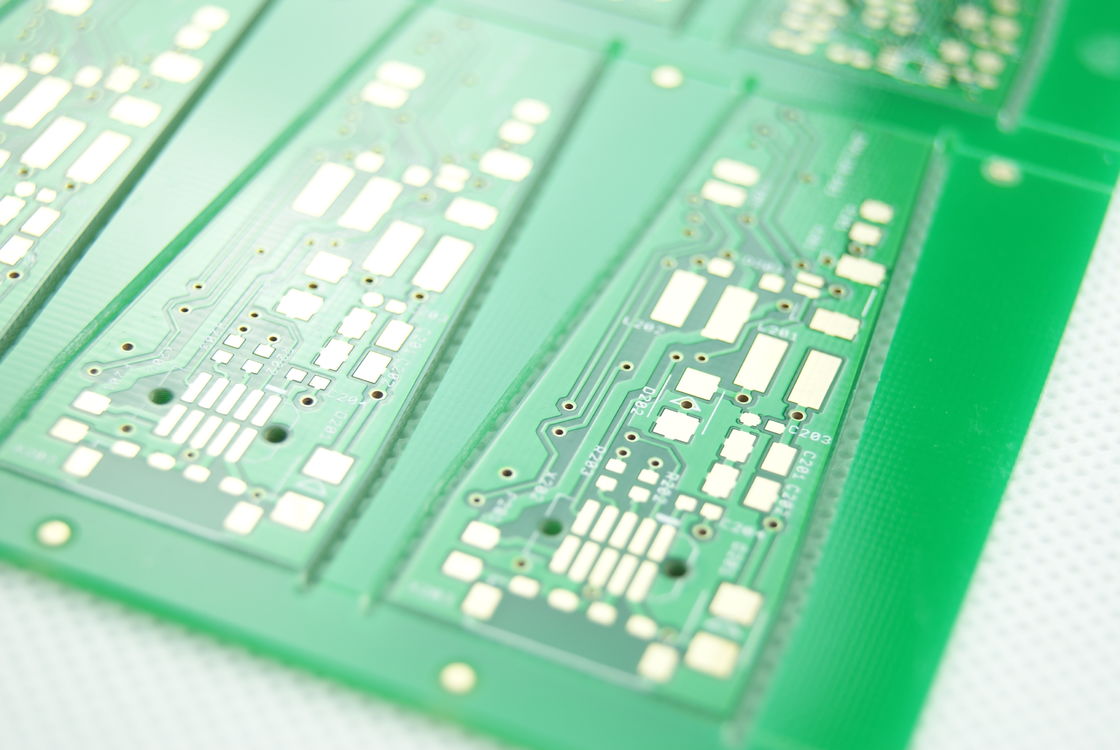

1-6oz Copper Weight Green Solder Resist Shipping Double Sided PCB via DHL UPS EMS TNT FedEx

1-6oz Copper Weight Green Solder Resist Shipping Double Sided PCB via DHL UPS EMS TNT FedEx

Contact Us
Request A Quote
Product Details
Raw Material:
Fr - 4
Shipping:
DHL UPS EMS TNT FedEx,Express Courier,Sea Transport
Silkscreen Color:
White,Black,yellow
Copper Weight:
1-6oz
Keyword:
Two Layer PCB
Solder Resist Color:
Green
Pcb Thickness:
1.6mm
Color:
Green, Blue, Yellow
Payment & Shipping Terms
RELATED PRODUCTS
Contact Us
Contact Now
Product Description

Product Description:

The Double Sided PCB, also known as a Two Layer PCB, represents a significant advancement in the printed circuit board (PCB) industry. This state-of-the-art product is meticulously engineered to meet the increasing demands for greater circuit complexity while maintaining a compact form factor. With two conductive layers, this bi-layer PCB is an ideal solution for a wide range of electronics applications, offering efficient use of space and enhanced connectivity compared to single-layer alternatives.

Our Double Sided PCB features two layers of copper conductor separated by a dielectric material. The conductor space is an impressive 3 mil, which allows for a high-density design that can accommodate more components per unit area. This tight conductor spacing is particularly beneficial for applications that require a high degree of miniaturization without compromising on performance. With this precision, our 1.5m double-sided PCBs are not just reliable; they are also at the cutting edge of PCB design, catering to the intricate needs of modern electronics.

The minimum hole diameter (Min Hole Dia) for this Dual-Sided PCB is 0.075 mm. This exceptionally small hole size is perfect for achieving high-precision via placements, which are essential for connecting the layers of the PCB. This fine detail ensures that electrical connections are strong and reliable, providing a stable foundation for the components mounted on the board. As miniaturization trends continue, the ability to accommodate such fine details becomes ever more critical in the electronics industry.

One of the most notable features of our Two Layer PCB is the surface treatment it undergoes. The Immersion Gold process is utilized to ensure the highest quality of conductivity and to protect against oxidation. Immersion Gold provides a flat surface which is ideal for fine-pitch components or for applications requiring exceptional planarity. The result is a PCB with excellent surface planarity, improved electrical performance, and extended shelf life, making this treatment a premium choice for our 1.5m double-sided PCBs.

The Dual-Sided PCB we offer is not just about performance; it is also about durability and reliability. The Immersion Gold surface treatment contributes to the long-term reliability of the PCB by providing a robust surface that resists corrosion. This surface treatment also enhances the solderability of the PCB, which is crucial for ensuring strong solder joints and a stable electrical connection throughout the life of the product. The combination of precise conductor spacing, fine hole diameters, and premium surface treatment makes our Bi-Layer PCB a top-tier product for any industry requiring high-performance electronics.

In conclusion, our Double Sided PCB is a versatile and high-quality product that meets the sophisticated needs of today's electronics industry. It features a 3 mil conductor space, a 0.075 mm minimum hole diameter, and an Immersion Gold surface treatment, all of which contribute to its superior performance and reliability. Whether for consumer electronics, medical devices, automotive applications, or any other field where precision and durability are paramount, our 1.5m dual-sided PCB is an outstanding choice that combines advanced technology with remarkable craftsmanship.



Features:

  • Product Name: Double Sided PCB
  • Silkscreen Color Options: White, Black, Yellow
  • PCB Color Variants: Green, Blue, Yellow
  • Number of Layers: Double
  • Minimum Conductor Space: 3 Mil
  • Raw Material: FR-4
  • Also known as Dual-Sided PCB
  • Commonly referred to as Double-Plated PCB
  • Technical Term: Two-Sided Circuit Board


Technical Parameters:

Technical Parameter Specification
Surface Finish HASL, ENIG, Immersion Tin, Immersion Silver, Gold Finger, OSP
Silkscreen White, Black, Yellow
Pcb Thickness 1.6mm
Feature 100% E-test
Min Hole Dia 0.075 mm
Keyword Two Layer PCB
Raw Material Fr-4
Layers Double
Solder Resist Color Green
Shipping DHL, UPS, EMS, TNT, FedEx, Express Courier, Sea Transport


Applications:

The Twin Layer PCB, also known as a Double Sided PCB, is an essential component in a myriad of electronic applications. Its versatility allows it to be used in various scenarios, ranging from simple devices to complex systems. With a standard PCB thickness of 1.6mm and a conductor space of 3 Mil, these PCBs offer excellent electrical performance and reliability. The choice of surface finishes, including HASL, ENIG, Immersion Tin, Immersion Silver, Gold Finger, and OSP, ensures that the two-sided circuit board can be tailored to meet the specific requirements of an application, whether it's for enhanced conductivity, corrosion resistance, or ease of soldering.

The use of high-quality Fr-4 raw material in the manufacturing of these PCBs provides the structural integrity needed for a wide range of operating conditions. This material is well-regarded for its thermal resistance and electrical insulation properties, making it an ideal choice for double-sided PCBs. Additionally, the availability of various silkscreen colors such as white, black, and yellow, allows for clear marking and identification of components, which is crucial in complex circuit assemblies.

One common application for the 1.5m double-sided pcb is in consumer electronics, where space is at a premium and functionality cannot be compromised. Products such as smartphones, tablets, and laptops rely on these compact yet powerful boards to deliver the multi-functionality that users expect. In the automotive industry, the robust nature of the Twin Layer PCB makes it suitable for in-vehicle systems that require long-term reliability under harsh conditions, such as engine control units, GPS systems, and entertainment systems.

In industrial settings, the two-sided circuit board is often found in control systems, power supplies, and converters. The ability to handle high-power applications and withstand extreme environments makes it indispensable in these scenarios. Medical devices also benefit from the precision and reliability of these PCBs, with applications ranging from small wearable health monitors to large, complex imaging systems. The aerospace industry is another sector where the durability and performance of double-sided PCBs are critical, with uses in communication systems, instrumentation, and more.

Overall, the Double Sided PCB product's attributes of varied surface finishes, standard thickness, and high-quality materials, coupled with its broad applicability, make it a cornerstone in the design and manufacture of electronic systems across a wide spectrum of industries.



Customization:

Our Double Sided PCB product offers a range of Product Customization Services to meet your specific design requirements. The Dual-Sided Printed Wiring Board is available with various surface finishes, including HASL, ENIG, Immersion Tin, Immersion Silver, Gold Finger, and OSP, to ensure reliability and performance for any application.

With a minimum hole diameter (Min Hole Dia) of 0.075 mm, our precision manufacturing allows for high-density interconnects on our 1.2m double-sided pcb . This makes it suitable for complex designs where space is at a premium.

We provide silkscreen options in White, Black, and Yellow, allowing for clear marking and identification on the board's surface. The Extra long double-sided pcb is designed to support applications requiring extended board dimensions without compromising on quality and performance.

All our boards come standard as Layers: Double, ensuring that you have the necessary real estate for your circuit designs. The Silkscreen Color can be selected from White, Black, or Yellow according to your preference and design aesthetics.



Support and Services:

Our Double Sided PCB product comes with comprehensive technical support and services designed to ensure your satisfaction and success with our products. Our support includes access to a detailed knowledge base, extensive documentation, and troubleshooting guides to help you resolve any issues you may encounter.

In addition to self-help resources, we provide software updates and patches to keep your PCB design tools up to date, ensuring compatibility and optimizing performance. Our dedicated technical support team is available to assist you with any product-related questions, helping you to understand features, configurations, and best practices for using our Double Sided PCBs effectively.

We also offer PCB design review services to help you optimize your designs for manufacturing. Our experts can provide feedback on layout, component placement, and thermal management to ensure high-quality production and performance.

For advanced technical issues or custom service requests, our engineering support team is ready to collaborate with you. We can provide tailored solutions and assist with complex design challenges to meet your specific needs.

Please note that some services may be subject to additional fees or service agreements. We are dedicated to providing you with the necessary tools and assistance to make the most of our Double Sided PCB products.
