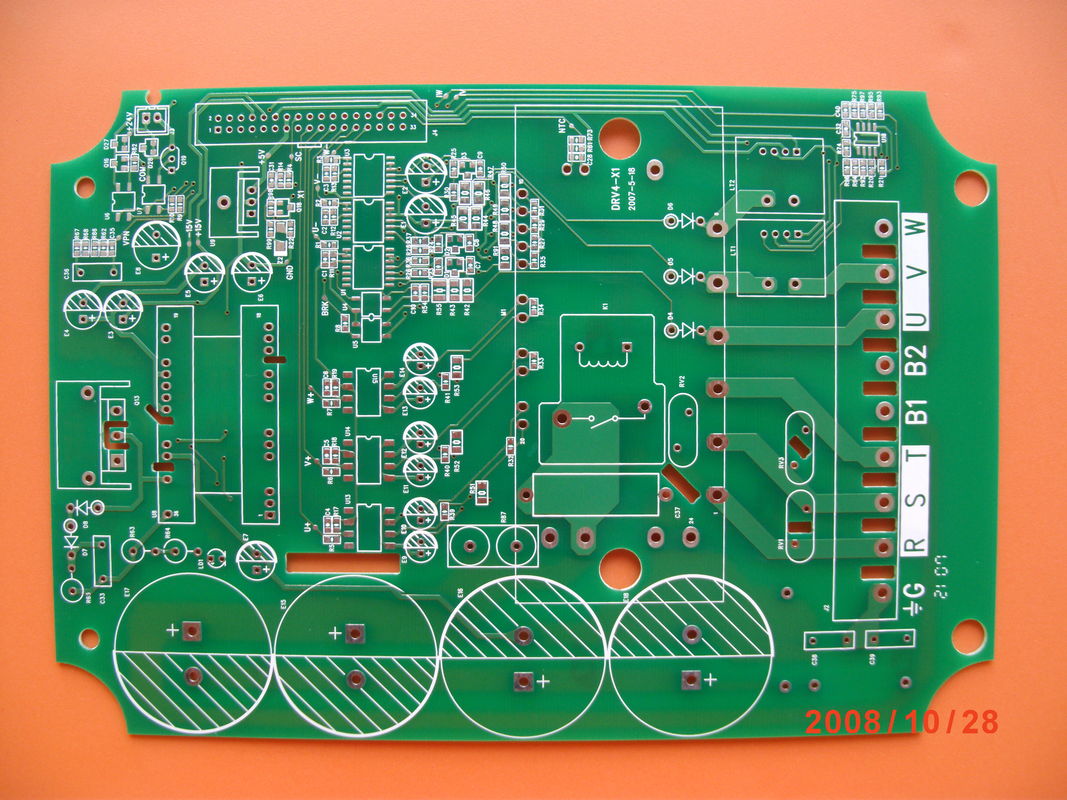

2Layers Double Sided PCB In Green Solder Resist Color Flame Retardant

2Layers Double Sided PCB In Green Solder Resist Color Flame Retardant

2Layers Double Sided PCB

2Layers double sided pcb board

Flame Retardant Double Sided PCB

Contact Us
Request A Quote
Product Details
Surface Finish:
HASL、ENIG、Immersion Tin、Immersion Silver、Gold Finger、OSP
Color:
Green, Blue, Yellow
Solder Resist Color:
Green
Silkscreen Color:
White,Black,yellow
Surface Treatment:
Immersion Gold
Pcb Thickness:
1.6mm
Layers:
Double
Conductor Space:
3 Mil
Copper Thickness:
1-10 OZ
Payment & Shipping Terms
RELATED PRODUCTS
Contact Us
Contact Now
Product Description

3-10oz Copper Weight Double Sided PCB for Sea Transport Shipping in Green Solder Resist Color

Product Description:

The Double Sided PCB is a bi-layer printed circuit board, designed to cater to complex circuits while maintaining a compact form factor. This type of PCB is a crucial component in numerous electronic devices, providing essential connectivity for components and enhancing the overall efficiency of electrical systems. Our 1.2m double-sided PCB is a testament to our commitment to quality and precision in the realm of electronic components.

One of the standout features of our 1.2m double-sided PCB is the variety of silkscreen color options available to our customers. The silkscreen layer, which adds labels and indicators to the PCB, is offered in three high-contrast colors: White, Black, and Yellow. This range of choices allows for clear visibility and contributes to the ease of assembly and identification of various components on the PCB during both the manufacturing process and potential troubleshooting scenarios.

In addition to the silkscreen options, we also provide a selection of solder mask colors to enhance the aesthetic appeal and functional utility of our PCBs. The colors available for the solder mask include Green, Blue, and Yellow. These colors not only provide a distinctive look to the PCB but also protect the copper circuitry from oxidation and prevent potential short circuits by insulating exposed copper traces.

Another critical attribute of our product is the copper weight. Ranging from 1 to 6 ounces, the copper weight can be tailored to meet the current-carrying requirements of various applications. Heavier copper weights are ideal for high-power devices, ensuring reliability and performance under demanding electrical loads. This customization allows our PCBs to be versatile and suitable for a wide range of electronic applications, from delicate low-power circuits to robust high-power systems.

The raw material used in the construction of our double-sided PCB is Fr-4, a well-known and widely respected substrate in the PCB industry. Fr-4 is chosen for its excellent electrical insulation properties, mechanical strength, and thermal resistance. It is a flame-retardant material, which significantly enhances the safety and durability of the final product. The use of Fr-4 ensures that our PCBs can withstand the rigors of various operating environments while maintaining their structural integrity and electrical performance.

One of the most critical features of our 1.2m double-sided PCB is the 100% E-test guarantee. Every single PCB we produce undergoes a thorough electrical testing procedure to ensure that there are no defects and that each board meets the highest standards of quality and functionality. This testing process includes checking for short circuits, open circuits, and ensuring the integrity of the electrical connections on the board. This feature provides our customers with the confidence that they are receiving a reliable and fully functional PCB for their applications.

The double-sided nature of our PCBs, also referred to as Bi-Layer PCBs, allows for a higher density of traces and the ability to incorporate more complex circuit designs compared to single-sided PCBs. This design characteristic is particularly beneficial for applications that require more connectivity and functionality in a limited space. The two conductive layers are interconnected through plated through-holes, ensuring seamless signal and power transmission across the board.

In conclusion, our 1.2m double-sided PCBs are engineered with precision and care, using high-quality Fr-4 material and offering a broad range of customization options including silkscreen and solder mask colors, as well as variable copper weights. With the assurance of a 100% E-test, customers can rely on these Bi-Layer PCBs for their vital electronic applications. Whether you are in the industry of consumer electronics, automotive, telecommunications, or any other field that relies on electronic components, our Double Sided PCBs are poised to meet and exceed your expectations in performance and reliability.



Features:

  • Product Name: Double Sided PCB
  • Layers: Double
  • Surface Treatment: Immersion Gold
  • Color Options: Green, Blue, Yellow
  • Shipping Options: DHL, UPS, EMS, TNT, FedEx, Express Courier, Sea Transport
  • PCB Thickness: 1.6mm
  • Feature: Dual-Sided PCB
  • Specialty: Overlength PCBs capability up to 1.5m
  • Size Range: Standard and Custom Sizes including 1.5m double-sided PCB


Technical Parameters:

Parameter Specification
Pcb Thickness 1.6mm
Silkscreen Color White, Black, Yellow
Shipping DHL, UPS, EMS, TNT, FedEx, Express Courier, Sea Transport
Conductor Space 3 Mil
Keyword Two Layer PCB
Color Green, Blue, Yellow
Surface Finish HASL, ENIG, Immersion Tin, Immersion Silver, Gold Finger, OSP
Copper Weight 1-6oz
Sillkscreen White, Black, Yellow
Raw Material Fr-4


Applications:

The Double-Plated PCB, with its precise conductor space of 3 mil and a standard PCB thickness of 1.6mm, is a vital component in numerous electronic applications where space optimization and circuit complexity are paramount. The double-sided nature of these boards allows for a higher density of circuits, making them an essential choice for a wide range of electronic devices. The surface treatment of Immersion Gold not only ensures excellent conductivity but also provides a reliable surface for component soldering, enhancing the durability and longevity of the final product.

Double-Sided Printed Boards are particularly well-suited for applications that demand moderate to high levels of circuit complexity while still requiring a relatively compact board size. This includes consumer electronics like smartphones, tablets, and laptops, where the efficient use of space is critical. Additionally, Double-Plated PCBs are found in LED lighting solutions, where the double-sided design allows for a more complex circuitry necessary to drive multiple LEDs effectively and manage thermal performance.

Industrial and automotive sectors also benefit from the reliability and enhanced connectivity of Double-Plated PCBs. In these environments, the boards may be used in control systems, power regulators, and various sensors. The robust construction and the quality of the Immersion Gold surface treatment ensure that these components can withstand the harsh conditions and high reliability requirements characteristic of these fields.

Moreover, the adaptability of Double-Plated PCBs extends to telecommunications infrastructure and medical devices. In the case of telecommunications, the boards are integral in signal processing equipment, routers, and switches. For medical devices, the precision and reliability of Double-Sided Printed Boards are critical for the sophisticated electronics found in diagnostic and monitoring equipment, where consistent performance is non-negotiable.

Logistically, the shipping options for these PCBs, including DHL, UPS, EMS, TNT, FedEx, Express Courier, and Sea Transport, ensure that they can be delivered promptly and safely to manufacturers and assemblers across the globe. This flexibility in shipping allows for efficient supply chain management, catering to both rapid prototyping needs and mass production demands.

In summary, the Double-Plated PCB is a versatile and reliable solution that plays a crucial role in a multitude of modern electronic applications. Its design and quality cater to a broad range of industries, reflecting a perfect balance between complexity, performance, and space utilization.



Customization:

Our Double Sided PCB product offers a variety of customization services to meet your specific needs. Choose from an array of surface finishes including HASL, ENIG, Immersion Tin, Immersion Silver, Gold Finger, and OSP to ensure optimal performance and durability. Specialized surface treatment options such as Immersion Gold are also available to enhance the conductivity and shelf life of your PCB.

We understand that the aesthetic and functionality of your PCB are paramount, which is why we offer solder resist colors in vivid Green, as well as other options to match your design requirements. Our standard PCB thickness is 1.6mm, providing a robust platform for your electronic components.

Whether you are looking for a 1.2m double-sided pcb or a larger 1.5m double-sided pcb, our Dual-Sided PCB product can be tailored to fit your project's scale and complexity. With a choice of colors including Green, Blue, and Yellow, you can customize your PCB to align with your branding or to simplify circuit identification during assembly and maintenance.



Support and Services:

Our Double Sided PCB product comes with comprehensive technical support and services designed to ensure your satisfaction and the optimal performance of your PCBs. Our team of experienced technicians is available to assist you with any technical challenges you may encounter, from design and layout to assembly and troubleshooting.

Technical support for our Double Sided PCBs includes:

  • Design Assistance: Our experts can provide guidance on your PCB designs to optimize for manufacturability and functionality.
  • Layout Review: Before manufacturing, we offer to review your PCB layout to identify any potential issues that could affect the performance or manufacturability of your boards.
  • Material Selection: We can help you select the best materials for your application, considering factors such as thermal management, signal integrity, and mechanical strength.
  • Manufacturing Support: If you have questions or need assistance during the manufacturing process, our team is here to provide the necessary support.
  • Assembly Guidelines: We offer recommendations and best practices for the assembly of your Double Sided PCBs to ensure high quality and reliability.
  • Troubleshooting: If you encounter any operational issues with your PCBs, our technical support team is ready to help you diagnose and resolve the problem.

In addition to technical support, we offer a range of services to enhance the value of your Double Sided PCBs:

  • Prototyping Services: We provide rapid prototyping to help you test and refine your designs before full-scale production.
  • Quality Testing: Our PCBs undergo rigorous quality testing to ensure they meet all performance and reliability standards.
  • Lead Time Management: We understand the importance of timely delivery and strive to meet your lead time requirements with efficient production scheduling.
  • After-Sales Support: Even after your PCBs have been delivered, we remain committed to your success and are available to provide any additional assistance you may need.

Please note that our technical support and services may vary based on your specific needs and the terms of your agreement with us. We are dedicated to providing you with high-quality support and ensuring that your Double Sided PCBs function as intended in your applications.
