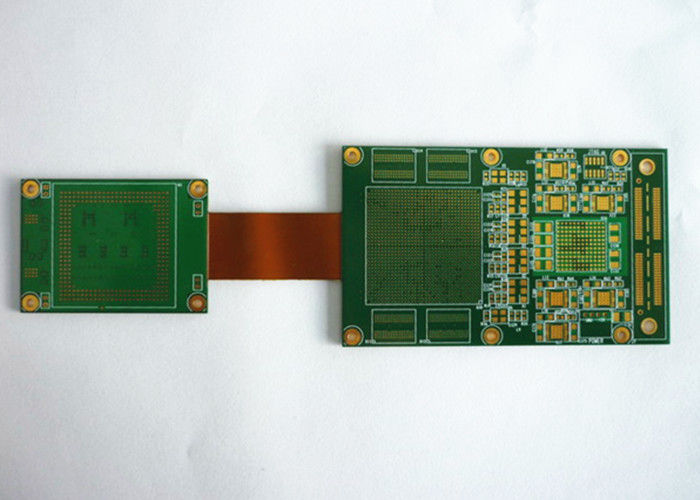

Density Sanforized Rigid Flex PCB Assembly 1-28 Layers 52L 0.5-10mm Bend Radius

Density Sanforized Rigid Flex PCB Assembly 1-28 Layers 52L 0.5-10mm Bend Radius

Sanforized Rigid Flex PCB Assembly

Rigid Flex PCB Assembly 28 Layers

Contact Us
Request A Quote
Product Details
Sanforized:
Local High Density, Back Drill
Pcb Layer:
1-28layers
Max Layer:
52L
Bend Radius:
0.5-10mm
Components:
SMD, BGA, DIP, Etc.
Product Type:
PCB Assembly
Minimum Trace/Space:
0.1mm
Dimension:
41.55*131mm
Payment & Shipping Terms
RELATED PRODUCTS
Contact Us
Contact Now
Product Description

Density Sanforized Rigid Flex PCB Assembly 1-28 Layers 52L 0.5-10mm Bend RadiusProduct Description:

The Rigid Flex PCB is a state-of-the-art solution that combines the flexibility of flexible printed circuits with the durability and stability of rigid printed circuit boards (PCBs). This innovative product represents a hybrid construction, enabling a more compact and reliable approach to traditional PCB design. Designed to cater to a wide range of industries, including but not limited to aerospace, medical, and automotive, the Rigid Flex PCB is the epitome of high-quality engineering for complex electronic assemblies.

One of the critical materials used in the construction of the Rigid Flex PCB is FR4, a well-known and respected material for rigid PCB layers due to its dielectric strength, thermal performance, and mechanical durability. The inclusion of Polyimide is also integral to the product's design, as it provides excellent flexibility and heat resistance, which is essential for the flex regions of the PCB. Additionally, PET (Polyethylene Terephthalate) is used, known for its outstanding tensile strength, stability, and electrical insulation properties. This combination of materials ensures that the Flex Rigid PCB does not compromise on quality and offers a product that can withstand demanding environments.

Understanding the crucial role of precision in electronic components, the Rigid Flex PCB boasts a bend radius ranging from 0.5mm to 10mm. This feature is particularly important for applications that require the PCB to endure multiple flexing cycles without failure. The precise bend radius also allows for tighter packaging and reduces the need for connectors and cables, resulting in a more streamlined and compact design.

Another significant attribute of the Flex-Rigid Printed Circuit Board is the hole position deviation, which is tightly controlled within ±0.05mm. This exceptional level of accuracy ensures that all components and vias are perfectly aligned, which is of utmost importance for the functionality and reliability of the final electronic product. With such precision, the Rigid Flex PCB minimizes the risk of misconnections and potential short circuits, thus maintaining the integrity of the electronic device.

The dimensions of the Rigid Flex PCB are meticulously crafted, with a standard dimension of 41.55*131mm, catering to a broad spectrum of applications and fitting seamlessly into various housings and enclosures. This dimension is carefully chosen to optimize space without compromising the PCB's performance and functionality.

Moreover, the Rigid Flex PCB incorporates advanced profiling punching techniques such as routing, V-CUT, and beveling. These profile options provide clean edge finishes and facilitate the separation of individual PCBs from the production panel, ensuring a smooth assembly process. The versatility afforded by these profiling methods allows for a high level of customization and adaptability to match specific design requirements.

In conclusion, the Flex-Rigid Printed Circuit Board stands as a technological marvel in the realm of electronic components, providing unmatched versatility, reliability, and precision. By integrating the best properties of both rigid and flexible materials, this product is tailored to meet the stringent demands of modern electronic devices. Whether it's for high-end consumer electronics or critical medical equipment, the Rigid Flex PCB is engineered to deliver optimal performance and durability, solidifying its position as a key component in the advancement of electronic manufacturing.



Features:

  • Product Name: Rigid Flex PCB
  • No Of Layers: 4 Layer
  • Max Layer: 52L
  • Material: FR4, Polyimide, PET
  • Product Type: PCB Assembly
  • Surface Finishing: HASL LF
  • Keywords:
    • Flex-Rigid Printed Circuit Board
    • Flexible Rigid Circuit Board
    • Rigid Flex Printed Wiring Board


Technical Parameters:

Attribute Specification
No Of Layers 4 Layer
Bend Radius 0.5-10mm
Max Layer 52L
Treatment ENIG/OSP/Immersion Gold/Tin/Silver
Flexibility 1-8 Times
Components SMD, BGA, DIP, Etc.
Profiling Punching Routing, V-CUT, Beveling
Material FR4, Polyimide, PET
Pcb Layer 1-28layers
Minimum Trace/Space 0.1mm


Applications:

The Rigid Flex PCB, with its dimension of 41.55*131mm and capability of having 1 to 28 layers, maxing out at 52L, is a state-of-the-art solution designed to provide unparalleled flexibility and reliability in a variety of application scenarios. This Bendable Printed Circuit Board uniquely combines the best of both rigid and flexible circuit technologies, offering a compact, durable, and versatile solution for complex electronic needs.

One of the primary application occasions for the Rigid Flex PCB is in wearable technology. Devices such as smartwatches, fitness trackers, and healthcare monitors benefit greatly from the Flexible Rigid Circuit Board design, which allows these devices to conform comfortably to the human body while withstanding the stress and strain of daily use. The small bend radius of 0.5-10mm ensures that these boards can be folded or twisted to fit into tight and irregular spaces without sacrificing performance.

In the realm of aerospace and automotive industries, the Rigid Flex PCB proves to be invaluable. The ability to withstand extreme environmental conditions, while providing reliable electrical performance, makes them an ideal choice for use in aircraft avionics, satellites, and vehicle control systems. The Flexible Stiff Circuit Board can be designed to fit into the sleek and compact spaces of modern machines, enabling more advanced features and controls to be included within a limited space.

Additionally, consumer electronics such as smartphones, cameras, and portable devices leverage the Rigid Flex PCB for its thin profile and high-density interconnect capabilities. The board's flexibility allows for innovative product design, like foldable or curved screens, and its robustness supports the device's longevity despite frequent bending or twisting during regular use.

Medical devices also benefit from the Rigid Flex PCB's features. Medical implants and diagnostic equipment require reliable circuitry that can conform to stringent space and flexing requirements. The biocompatibility and high-precision capabilities of the Rigid Flex PCB make it an excellent choice for critical medical applications where consistent performance and patient safety are priorities.

Lastly, the Rigid Flex PCB is also widely used in industrial applications where machinery vibration and thermal expansion are common issues. Its resilience and adaptability under such conditions ensure uninterrupted performance, which is crucial for maintaining operational efficiencies and minimizing downtime.

In conclusion, the Rigid Flex PCB, with its versatile design and robust build, is perfectly suited for a wide range of demanding applications across various industries. It stands as a testament to the advancements in printed circuit board technology, offering designers and engineers the freedom to innovate without the constraints of traditional rigid board designs.



Customization:

Experience the versatility of our Rigid Flex PCB product, expertly designed to cater to your sophisticated electronic needs. With dimensions of 41.55*131mm, our Rigid Flex Printed Wiring Board combines the resilience of a rigid PCB with the adaptability of a flex circuit. As a premier PCB Assembly service provider, we ensure that your product meets the highest standards of quality and efficiency.

Our Flexible Stiff Circuit Board boasts a Minimum Trace/Space of 0.1mm, allowing for intricate circuit designs and high-density applications. The PCB layer count ranges from 1 to 28 layers, providing ample flexibility for complex electronic architectures. We utilize top-grade materials such as FR4, Polyimide, and PET to construct our PCBs, ensuring durability and optimal electrical performance.

Whether you're in need of a prototype or full-scale production, our Product Customization Services are tailored to meet your exact specifications. Our Rigid Flex PCBs are a testament to our commitment to excellence and our ability to deliver a Flexible Stiff Circuit Board that exceeds your expectations.



Support and Services:

Rigid Flex PCB products combine the best of both rigid boards and flexible circuits integrated together into one unit, allowing for a more streamlined design with increased durability and reliability. Our technical support and services for Rigid Flex PCBs are tailored to meet the diverse needs of our clientele, ensuring that each project is supported from conception through to completion.

Our team of experienced engineers is available to provide expert advice on design optimization for manufacturability, performance, and cost-effectiveness. We offer assistance in material selection, stack-up configuration, and impedance control, ensuring that your Rigid Flex PCB meets all electrical and mechanical requirements.

We provide comprehensive testing services to ensure the quality and functionality of your Rigid Flex PCB. Our testing procedures include electrical testing, such as continuity and insulation resistance tests, as well as mechanical testing to assess the flexibility and durability of the flex portions of the PCB.

For clients who require additional support, we offer design services that include schematic capture, layout design, and prototype development. Our goal is to help streamline the design process and to bring your Rigid Flex PCB concept to life with precision and efficiency.

In the event of any technical issues or concerns, our technical support team is dedicated to providing prompt and effective solutions. We are committed to continuous improvement and welcome feedback to enhance our products and services.

For any questions regarding the application or integration of Rigid Flex PCBs into your projects, our knowledgeable support staff is always ready to assist. We strive to ensure that you have all the resources necessary for a successful implementation of Rigid Flex PCB technology in your applications.
