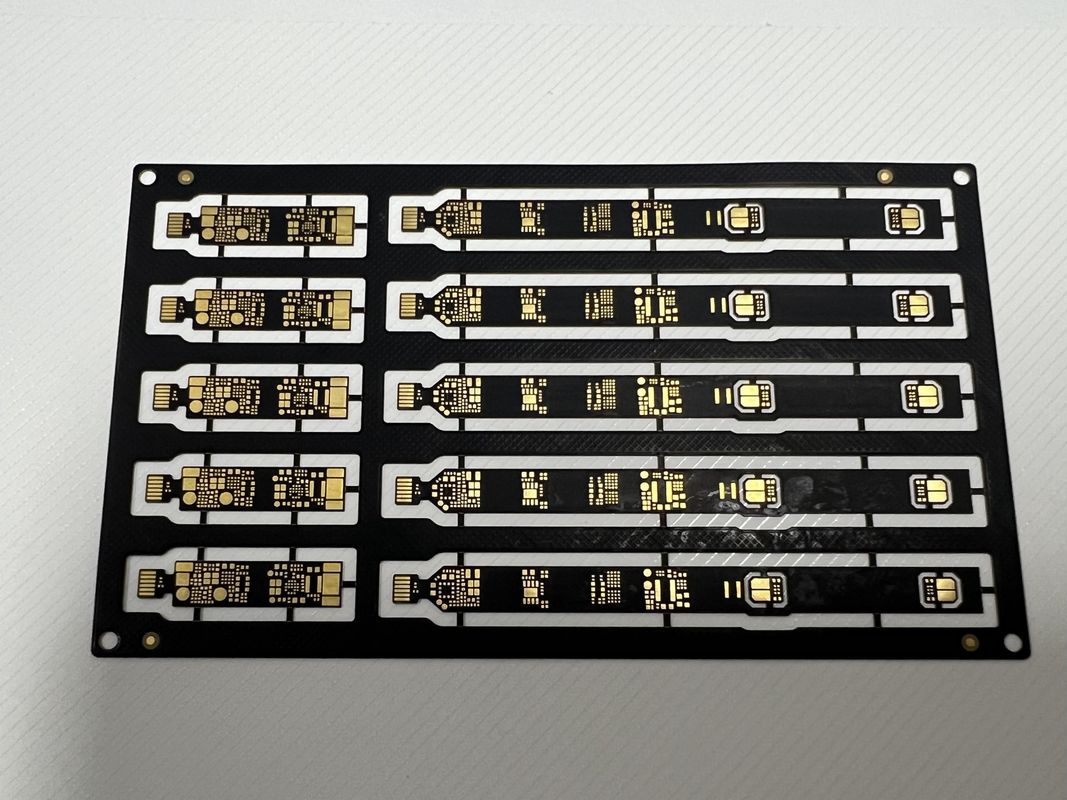

Local Density Sanforized Rigid Flex PCB Assembly 4 Layer 0.1mm Trace with SMD BGA Components

Local Density Sanforized Rigid Flex PCB Assembly 4 Layer 0.1mm Trace with SMD BGA Components

Contact Us
Request A Quote
Product Details
Max Layer:
52L
No Of Layers:
4 Layer
Sanforized:
Local High Density, Back Drill
Minimum Trace/Space:
0.1mm
Treatment:
ENIG/OSP/Immersion Gold/Tin/Silver
Product Type:
PCB Assembly
Pcb Layer:
1-28layers
Components:
SMD, BGA, DIP, Etc.
Payment & Shipping Terms
RELATED PRODUCTS
Contact Us
Contact Now
Product Description

Product Description:

The Rigid Flex PCB is an innovative product that expertly combines the robustness of a traditional rigid PCB with the versatility of flexible circuit technology. This hybrid solution is designed to meet the stringent requirements of modern electronics, where space constraints and functional complexity demand a more sophisticated approach to circuitry. Ideal for dynamic or high-flex applications, the Rigid Flex PCB offers unmatched durability and reliability in a wide range of electronic devices.

Our Rigid Flex PCBs are available in a broad range of configurations, with options ranging from 1 to 28 layers. This flexibility ensures that our products can cater to various design complexities and electrical performance specifications. Whether you're working on a simple device or a complex, multi-layered system, our Rigid Flex PCBs can be tailored to meet your exact needs.

The integration of components onto our Rigid Flex PCBs is handled with the utmost precision. We accommodate a variety of components including Surface-Mount Devices (SMD), Ball Grid Arrays (BGA), Dual In-line Packages (DIP), and others. Our advanced assembly techniques ensure a secure and reliable connection for all components, which is critical to the performance and longevity of the final product.

Profiling and punching are carried out with meticulous attention to detail, offering options such as routing, V-CUT, and beveling. These processes are critical for ensuring that the Rigid Flex Printed Wiring Boards fit perfectly within the designated enclosure and align accurately with other mechanical components. Our state-of-the-art equipment ensures that each board is cut to precise specifications, resulting in a polished and professional finish.

Flexibility is a cornerstone feature of the Flex Rigid PCB. With the capability to withstand 1 to 8 times bending, our products are built to adapt to the physical constraints of their environment without compromising performance. This level of flexibility is essential for applications that require the circuit board to conform to a particular shape or to withstand regular movement. It also opens up new design possibilities for engineers looking to innovate within tight spaces.

Precision is paramount when it comes to the manufacturing of Flex-Rigid Printed Circuit Boards. Our manufacturing process is fine-tuned to ensure that hole position deviation is maintained within ±0.05mm. This exceptional accuracy is crucial for the correct placement of components, especially for high-density designs with a large number of vias or for products that require precise alignment with other parts of the system.

The Rigid Flex PCB is more than just a piece of hardware; it is a testament to the advancements in the field of electronic engineering. By merging the benefits of rigid and flexible technologies, these boards offer a solution that is both practical and innovative. This product is not just about what it can do today, but also about empowering designers and engineers to push the boundaries of what is possible tomorrow.

In summary, the Rigid Flex PCB represents the cutting edge of printed circuit board technology. It offers the strength and stability of a rigid PCB while providing the adaptability of a flexible circuit. With options for 1-28 layers, the ability to incorporate a range of components, precise profiling punching, substantial flexibility, and exacting hole position deviation standards, this product stands as a versatile and reliable choice for a multitude of electronic applications.



Features:

  • Product Name: Rigid Flex PCB
  • Hole Position Deviation: ±0.05mm
  • No Of Layers: 4 Layer
  • Product Type: PCB Assembly
  • Bend Radius: 0.5-10mm
  • Surface Finishing: HASL LF
  • Also known as a Flexible Stiff Circuit Board
  • Can be referred to as a Flexible Rigid Circuit Board
  • Features Flexible-Bendable PCB technology for versatile use


Technical Parameters:

Technical Parameter Description
Profiling Punching Routing, V-CUT, Beveling
Material FR4, Polyimide, PET
Components SMD, BGA, DIP, Etc.
Pcb Layer 1-28 layers
Sanforized Local High Density, Back Drill
Hole Position Deviation ±0.05mm
No Of Layers 4 Layer
Minimum Trace/Space 0.1mm
Max Layer 52L
Treatment ENIG/OSP/Immersion Gold/Tin/Silver


Applications:

The Rigid Flex PCB, a blend of robust rigid printed circuit boards and flexible connectors, is an innovative solution that combines the best attributes of both board types. It is a bendable printed circuit board designed to ensure stability in parts where the structure is paramount, yet offers flexibility to connect various sections of a device seamlessly. The product's bend radius ranges from 0.5mm to 10mm, which allows for tight bends in compact spaces without compromising the integrity of the circuitry.

With up to 52 layers (Max Layer), the Rigid Flex Printed Wiring Board is capable of supporting complex, multi-layered designs that are typical in sophisticated electronic devices. This level of layering versatility is particularly beneficial in applications such as aerospace, medical devices, and military systems, where space is at a premium and functionality cannot be sacrificed.

The local high-density attribute ensures that even in the smallest areas of the board, a high number of connections can be accommodated. This is coupled with a back drill feature that helps in reducing the board's inductance and improving signal integrity, which is essential for high-speed circuit applications. The sanforized process used in the manufacturing of Flex Rigid PCBs guarantees that each board meets the precise size requirements, eliminating any potential stress on the board's materials and ensuring reliability.

Furthermore, the Rigid Flex PCB is crafted with numerous profiling punching techniques such as routing, V-CUT, and beveling. These methods enhance the board's mechanical endurance and contribute to the ease of assembly, which is particularly important in volume production scenarios. Beveling, for instance, aids in smoother insertion of the PCB into connectors, reducing wear and tear during the assembly process.

With a minimum trace/space of 0.1mm, the Rigid Flex PCB can accommodate the high-density component placement that is increasingly necessary in modern electronic devices. This fine line technology allows for a greater number of components per unit area, making it an ideal choice for applications where space optimization is critical, such as in smartphones, cameras, and wearable technology.

Given these attributes, the Rigid Flex PCB finds its application in a wide array of occasions and scenarios. It is the go-to choice for engineering teams looking for a solution that requires a combination of compact design, durability, and high performance. Whether it is for dynamic flexing needs of a wearable device or the high reliability required in satellite systems, the Rigid Flex PCB stands out as a versatile and dependable option in the rapidly evolving electronics industry.



Customization:

Our Flex Rigid PCB customization services offer a variety of options to meet your specific application requirements. With components such as SMD, BGA, DIP, and more, we ensure the seamless integration of all necessary parts onto your Flexible Rigid Circuit Board. Our flex-to-install capabilities range from 1-8 times to accommodate different levels of flexibility and complexity.

To achieve optimal performance, our sanforization process includes Local High Density and Back Drill options, improving signal integrity and reliability for your Flex-Rigid Printed Circuit Board. Profiling punching techniques such as Routing, V-CUT, and Beveling are available to precisely shape and size the PCB to your exact specifications.

Surface treatment is critical for the longevity and functionality of your product. We provide a variety of treatments including ENIG, OSP, Immersion Gold, Tin, and Silver to protect your Rigid Flex PCB against oxidation and ensure superior electrical performance.



Support and Services:

Our Rigid Flex PCB products are supported by an extensive range of technical support and services, designed to ensure the highest level of performance and reliability. Our team of experienced engineers is available to provide expert advice on design, material selection, and layout to optimize the functionality of your Rigid Flex PCB. We offer comprehensive testing services to guarantee that your PCB meets all industry standards for quality and performance. Additionally, we provide detailed documentation and resources to assist with any technical requirements. Our commitment to customer satisfaction ensures that you receive the best support throughout your product's lifecycle.
