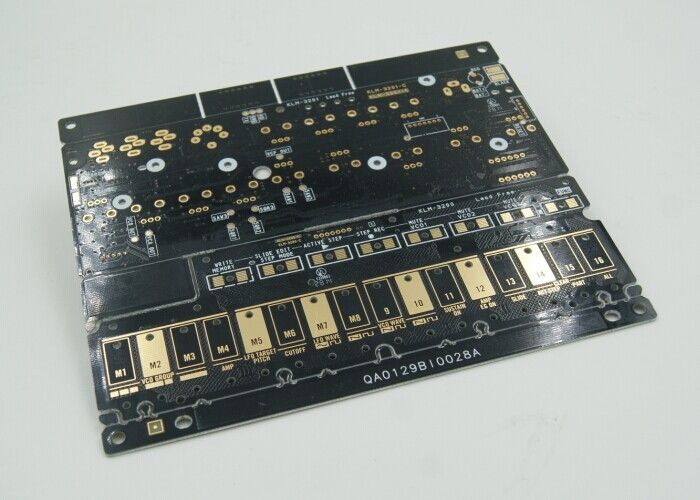

Gold Finished 12 Layer PCB Board Black High Density Interconnect PCB With BGA

Gold Finished 12 Layer PCB Board Black High Density Interconnect PCB With BGA

Gold Finished 12 Layer PCB Board

High Density Interconnect PCB With BGA

Gold Finished High Density Interconnect PCB

Contact Us
Request A Quote
Product Details
Vacuum Packing With Carton Box
HASL、Immersion Gold、Immersion Tin、Immersion Silver、Gold Finger、OSP
4-22 Layer
Glass Epoxy:
RO4003C+ Tg170 FR-4
Surface Mount Technology:
Key Word:
Rogers PCB Board
Max. Panel Size:
Copper Weight:
Payment & Shipping Terms
Contact Us
Contact Now
Product Description

12 Layer Black High Density Interconnect HDI PCB Board Gold Finish With BGA

Product Description:

The Multilayer PCB Board stands as a pinnacle of modern electronics, a testament to the striking advancements in the field of circuit board technology. This product, which is a marvel of engineering precision, is designed to meet the rigorous demands of complex electronic devices. The Multilayer PCB Board is fabricated from the highest quality Glass Epoxy: RO4003C+ Tg170 FR-4, guaranteeing stability and reliability in a wide range of operating conditions. This material ensures that the board is not only durable but also has excellent thermal resistance and electrical insulation properties.

While the size is not explicitly specified, the Multilayer Printed Board can be tailored to various specifications within the generous maximum panel size of 600mm*1200mm. This flexibility allows for a wide range of applications, from compact consumer electronics to larger, more intricate systems. The board's ability to accommodate between 4 and 22 layers demonstrates its versatility and suitability for complex circuit designs. Whether it's a 12 Layers PCBs or a simpler 4-layer configuration, this product can be customized to fit the unique needs of any project.

The advanced Multilayer PCB Board is constructed with meticulous attention to detail, ensuring that each layer is perfectly aligned and securely bonded. This precision is crucial for maintaining the integrity of the electrical connections and for the overall performance of the board. As electronic devices become increasingly sophisticated, the demand for high-density interconnects rises. The Multilayer PCB Board is adept at providing such interconnectivity while maintaining signal integrity and minimizing cross-talk, which is essential for high-speed signal transmission.

One of the key advantages of the Multilayer Printed Board lies in its exceptional electromagnetic shielding capabilities. By strategically placing ground and power planes within the multilayer stack-up, the board effectively shields sensitive components from electromagnetic interference (EMI), ensuring that devices function optimally without disruption from external noise. Moreover, the use of multiple layers enables designers to implement more complex routing strategies, which is essential for achieving the high levels of functionality required in modern electronics.

To further enhance the value of this product, the manufacturer offers a comprehensive One-stop Service OEM. This service simplifies the procurement process for customers by providing a full spectrum of services from design and prototyping to mass production and quality control. Clients can rest assured that their exact specifications will be met with the utmost precision and that their projects will be handled by a team of experts dedicated to delivering excellence at every step of the manufacturing process.

In summary, the Multilayer PCB Board is a sophisticated solution for today's high-tech electronics. With its robust construction using Glass Epoxy: RO4003C+ Tg170 FR-4, the capability to support 4 to 22 layers within a maximum panel size of 600mm*1200mm, and the added benefit of One-stop Service OEM, it represents a superior choice for anyone in need of a reliable and adaptable PCB solution. Whether for industrial applications, medical devices, or consumer electronics, the Multilayer Printed Board, especially configurations like the 12 Layers PCBs, is set to be an indispensable component in the development of innovative and high-performing electronic products.



  • Product Name: Multilayer PCB Board
  • Number Of Layers: 4-22 Layers
  • Size: Customizable based on client requirements
  • Glass Epoxy: RO4003C+ Tg170 FR-4
  • Service: One-stop Service OEM
  • Surface Finish Options:
    • HASL (Hot Air Solder Leveling)
    • Immersion Gold
    • Immersion Tin
    • Immersion Silver
    • Gold Finger
    • OSP (Organic Solderability Preservative)
  • Type: Multilayer Printed Board
  • Application: Multilayer Circuit Board
  • Design: Multilayer Printed Circuit Board

Technical Parameters:

Technical Parameter Specification
Copper Weight 12OZ
Packing Vacuum Packing With Carton Box
Layers 4-22 Layer
Min. Hole Size 0.2mm
Copper Thickness 0.5oz-6oz
Service One-stop Service OEM
Key Word Rogers PCB Board
Glass Epoxy RO4003C+ Tg170 FR-4
Max. Panel Size 600mm*1200mm
Thickness 0.2mm-6.0mm


The Multilayer PCB Board, with its cutting-edge glass epoxy composition of RO4003C+ Tg170 FR-4, is an exemplary product designed for high-performance and durability in various applications. Its robust construction ensures that it can handle the demands of complex electronic circuitry, making it an ideal choice for customers who require the reliability and efficiency of multilayer circuitry boards. The copper thickness options ranging from 0.5oz to 6oz allow for customization based on the electrical requirements, providing versatility for different uses.

One of the most significant applications of these boards is in the field of telecommunications, where the need for reliable and high-speed connections is paramount. The 12 Layers PCBs are particularly well-suited for this sector, offering the necessary complexity to manage multiple signals without interference. Their high thermal resistance ensures stable performance even under the stress of continuous operation, which is a common scenario in telecommunication systems.

Additionally, these Multilayer Printed Boards are equipped with Surface Mount Technology (SMT) compatibility, opening up possibilities for use in advanced electronic devices. From smartphones to medical imaging equipment, SMT allows for the placement of tiny components on the PCB, enabling the creation of compact, yet powerful gadgets. The large maximum panel size of 600mm*1200mm further extends its applications to industrial-grade machines and servers that require larger boards.

The aerospace industry also benefits from the high-quality standards of these PCBs. In environments where precision and reliability are non-negotiable, the multilayer circuitry board stands up to the challenge, functioning flawlessly in navigation systems, onboard computers, and communication devices within aircraft and spacecraft. The material's resistance to temperature fluctuations and vibration is a critical factor in these high-stakes applications.

For the safe transportation and storage of these sensitive components, vacuum packing with a carton box is employed to ensure that the boards arrive in pristine condition, free from moisture and contaminants. This careful packing method is particularly crucial for maintaining the integrity of the boards during long shipments and storage periods before assembly.

In conclusion, the Multilayer PCB Board is a versatile product that caters to a wide range of applications and scenarios. From cutting-edge telecommunications and aerospace technology to the medical and consumer electronics industries, these boards offer unparalleled performance and reliability. The combination of high-quality materials, customizable features, and careful packing makes them an indispensable component in the world of complex electronic solutions.



Our Multilayer PCB Board customization services cater to your specific needs, ensuring that you receive a product that fits your requirements perfectly. With options ranging from 4 to 22 layers, we accommodate a variety of complexities, including advanced 16 Layers PCBs for more intricate designs.

Our boards are constructed with high-quality materials, including RO4003C+ Tg170 FR-4 glass epoxy, providing a robust and reliable foundation for your electronic components. The Multilayer PCB is designed to maintain its integrity and performance in various environmental conditions.

When it comes to the finishing touches, we offer a Copper Weight of up to 12OZ, ensuring excellent conductivity and durability for your PCB. All our PCBs are carefully packaged using Vacuum Packing With Carton Box to guarantee that your product arrives in pristine condition, ready for immediate use.


Support and Services:

Our Multilayer PCB Board comes with comprehensive technical support and services to ensure you get the most out of your product. Our dedicated team of experts is available to provide guidance on design best practices, material selection, and layout optimization to ensure high performance and reliability of your PCBs.

We offer a range of services including electrical testing to guarantee the functionality of your multilayer PCBs. Our support also covers thermal analysis to help manage heat dissipation and maintain the integrity of your boards under varying operational conditions.

For any issues related to the manufacturing process, our technical support team can provide quick and effective troubleshooting advice. We strive to help you minimize downtime and ensure that your production timelines are met with the highest quality standards in mind.

In addition, we provide detailed documentation and resources to assist you in understanding the specifications and capabilities of our multilayer PCBs. This includes handling and maintenance guidelines to extend the lifespan of your boards.

To enhance the performance and longevity of your Multilayer PCB Board, we offer periodic updates on best practices and innovations in PCB technology. Stay informed with the latest trends and improvements to keep your applications at the forefront of efficiency and reliability.

We are committed to your success and offer these support services to ensure your Multilayer PCB Board delivers the excellent performance it was designed for. For further assistance or queries, please reach out to our customer support team (contact information excluded).
