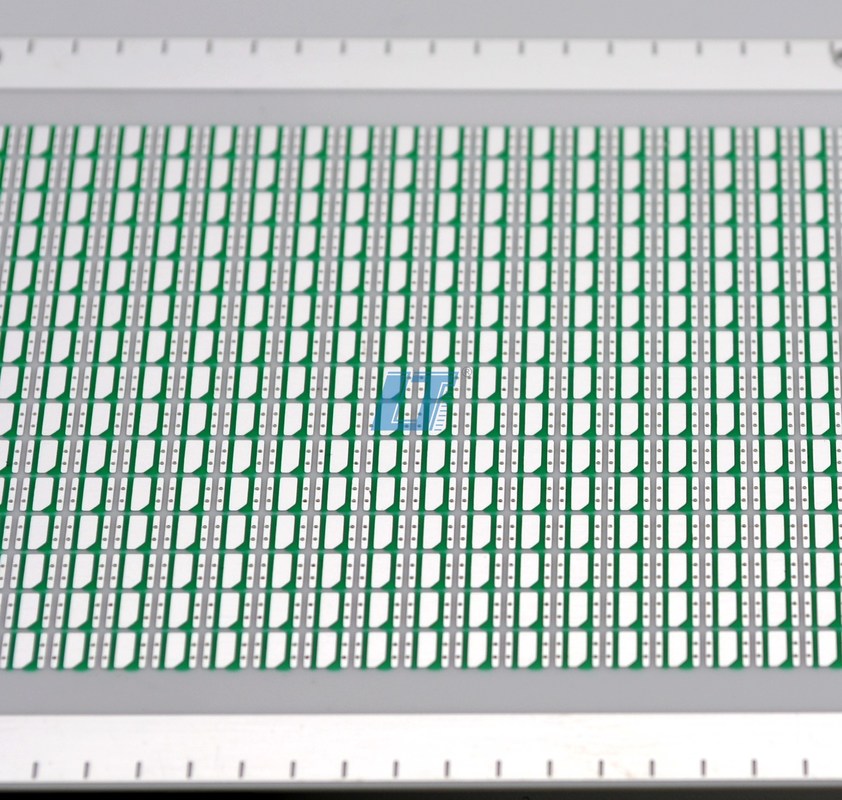

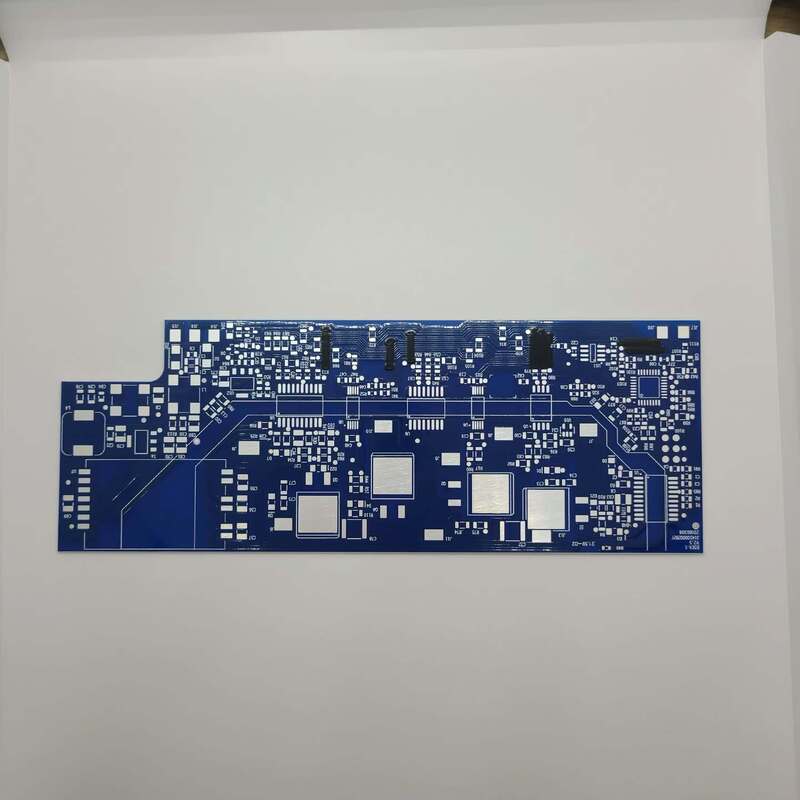

Thickness 0.1mm to 3.0mm Ceramic Copper Clad PCB Featuring Size Range 2mm to 200mm Perfect for High Reliability Circuits

Product Details

Substratetype:

Ceramic

Application Segment:

Auto,Industrial,Medical,DataCom、Comsumer

Pcb Thickness:

1.6 MM

Type:

Ceramic Thickfilm PCB

Copperthickness:

18µm - 105µm

Size:

2mm~200mm

Surfacefinish:

ENIG, HASL, Gold Plating

Dielectricconstant:

7-9

Highlight:

ceramic copper clad PCB

high reliability ceramic PCB

0.1mm to 3.0mm ceramic PCB

Payment & Shipping Terms

Medical Ceramic PCB Board Incorporating Ceramic Substrate and HASL Surface Finish Providing Excellent Thermal Management

Get Best Price

RF Modules Ceramic PCB Board UL Certified Featuring Ceramic Thickfilm PCB Designed for Complex Electronic Circuit Integration

Get Best Price

Ceramic Substrate Type Ceramic PCB Board UL Certified Including 100 Percent E Testing Service Ensuring and Durability in Electronics

Get Best Price

Thickness 0.1mm to 3.0mm Ceramic Copper Clad PCB Featuring Size Range 2mm to 200mm Perfect for High Reliability Circuits

Get Best Price

+001-512-7443871

sales@ltcircuit.com

Contact Now

Product Description

Ceramic Copper Clad PCB

Product Overview

The Ceramic PCB Board is an advanced printed circuit board featuring a ceramic substrate that delivers exceptional thermal conductivity, mechanical strength, and electrical insulation. This high-reliability solution is engineered for demanding applications across multiple industries.

Key Features

Product Name: Ceramic PCB Board (Item No: R0028)
Thickness range: 0.1mm - 3.0mm
100% E-Testing service for quality assurance
Ideal for High Power Electronics, LED Lighting, and RF Modules
Material Types: ALN Ceramic PCBs, Ceramic High Temperature PCB, and Ceramic Glass Composite PCB

Technical Specifications

Parameter	Specification
Copper Thickness	18µm - 105µm
Thickness	0.1mm - 3.0mm
Certificates	ISO9001, ISO14001, IATF16949, UL
Size	2mm ~ 200mm
Type	Ceramic Thickfilm PCB
Substrate Type	Ceramic
Application	High Power Electronics, LED Lighting, RF Modules
Item No	R0028
Surface Finish	ENIG, HASL, Gold Plating
Application Segment	Auto, Industrial, Medical, DataCom, Consumer

Applications

This ceramic substrate PCB excels in applications requiring superior heat dissipation and electrical insulation, including:

Power electronics and LED lighting systems
RF modules and microwave applications
Automotive electronics and aerospace systems
Medical devices and telecommunications equipment

Customization Options

Our Ceramic PCB Board offers comprehensive customization services including dimensional adjustments, surface finish selections, and tailored electrical properties. With a dielectric constant of 7-9, this ceramic printed circuit board provides excellent thermal management capabilities for high-temperature applications.

Support & Services

We provide complete technical support including design consultation, material selection guidance, and troubleshooting services. Our engineering team assists with custom design requirements and prototype development. Additional services include rework, repair, and defect analysis to ensure optimal product performance and longevity.
