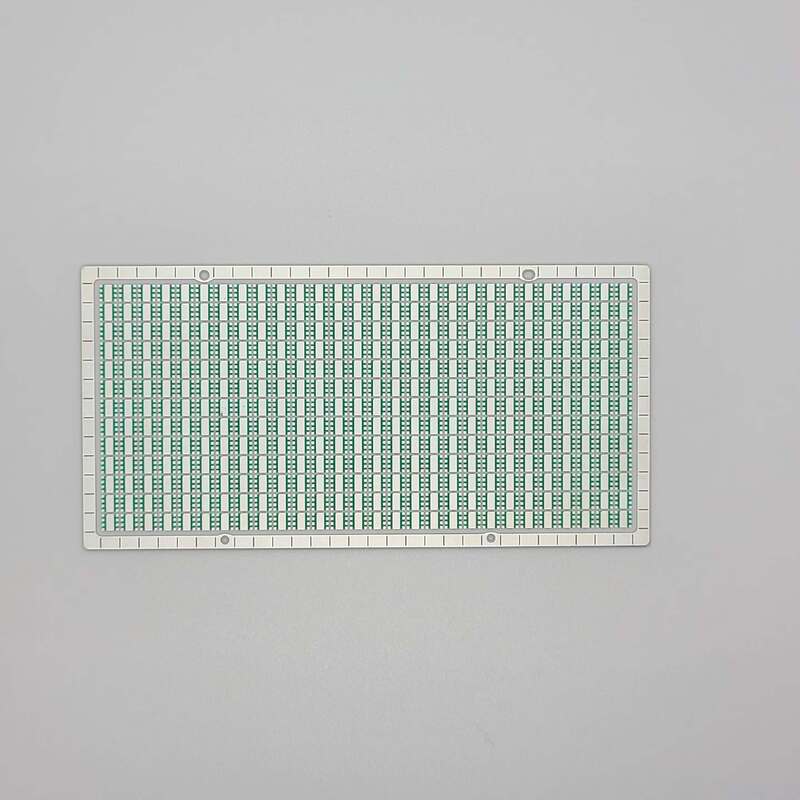

RF Modules Ceramic PCB Board UL Certified Featuring Ceramic Thickfilm PCB Designed for Complex Electronic Circuit Integration

Ceramic PCB Board UL Certified

Ceramic Thickfilm PCB for Circuit Integration

RF Modules Ceramic PCB Board

Request A Quote

Product Details

Copperthickness:

18µm - 105µm

Item No:

R0028

Thickness:

0.1mm - 3.0mm

Productname:

Ceramic PCB Board

Surfacefinish:

ENIG, HASL, Gold Plating

Substratetype:

Ceramic

Layercount:

1-4 Layers

Type:

Ceramic Thickfilm PCB

Highlight:

Ceramic PCB Board UL Certified

Ceramic Thickfilm PCB for Circuit Integration

RF Modules Ceramic PCB Board

Payment & Shipping Terms

Medical Ceramic PCB Board Incorporating Ceramic Substrate and HASL Surface Finish Providing Excellent Thermal Management

Get Best Price

RF Modules Ceramic PCB Board UL Certified Featuring Ceramic Thickfilm PCB Designed for Complex Electronic Circuit Integration

Get Best Price

Ceramic Substrate Type Ceramic PCB Board UL Certified Including 100 Percent E Testing Service Ensuring and Durability in Electronics

Get Best Price

Thickness 0.1mm to 3.0mm Ceramic Copper Clad PCB Featuring Size Range 2mm to 200mm Perfect for High Reliability Circuits

Get Best Price

+001-512-7443871

sales@ltcircuit.com

Contact Now

Product Description

RF Modules Ceramic PCB Board UL Certified

Featuring Ceramic Thickfilm PCB designed for complex electronic circuit integration, the R0028 Ceramic PCB Board represents an advanced solution meeting demanding requirements of modern electronic applications.

Product Overview

With a standard PCB thickness of 1.6mm and customizable sizes ranging from 2mm to 200mm, this product offers remarkable versatility and precision for various design specifications. Engineered using high-quality ceramic materials, it boasts exceptional heat dissipation capabilities that significantly enhance electronic device efficiency and reliability.

Key Features

Product Name: Ceramic PCB Board
Item No: R0028
Testing Service: 100% E-Testing
Dielectric Constant: 7-9
Application Segments: Automotive, Industrial, Medical, Data Communication, Consumer Electronics
High-performance Ceramic Thermal Management PCB for efficient heat dissipation
Advanced Ceramic Hybrid PCB design for enhanced electrical and thermal properties
Reliable Ceramic Hybrid PCB suitable for demanding industrial and medical applications

Technical Specifications

Item No	R0028
Surface Finish	ENIG, HASL, Gold Plating
Type	Ceramic Thickfilm PCB
Product Name	Ceramic PCB Board
Application	High Power Electronics, LED Lighting, RF Modules
Dielectric Constant	7-9
PCB Thickness	1.6 MM
Substrate Type	Ceramic
Thickness Range	0.1mm - 3.0mm
Layer Count	1-4 Layers

Applications

Designed for high power electronics, LED lighting, and RF modules requiring excellent thermal management and electrical performance. The board's robust construction and advanced materials make it ideal for telecommunications, automotive electronics, industrial power supplies, and medical devices where reliability under extreme conditions is critical.

Customization Options

We offer comprehensive customization services with sizes from 2mm to 200mm, manufactured using Al2O3 ceramic materials. Our solutions ensure exceptional performance with dielectric constant ranging from 7 to 9 for optimal electrical insulation and thermal management.

Quality Certifications

Certified to ISO9001, ISO14001, IATF16949, and UL standards, ensuring compliance with stringent quality, environmental, and safety requirements for critical electronic applications.

Support & Services

For optimal performance, use temperature-controlled soldering equipment (max 350°C, 10 seconds per joint). Clean with isopropyl alcohol only. Handle carefully to avoid cracking due to ceramic brittleness. Our engineering team provides custom design support, thermal management solutions, and technical consultation.
