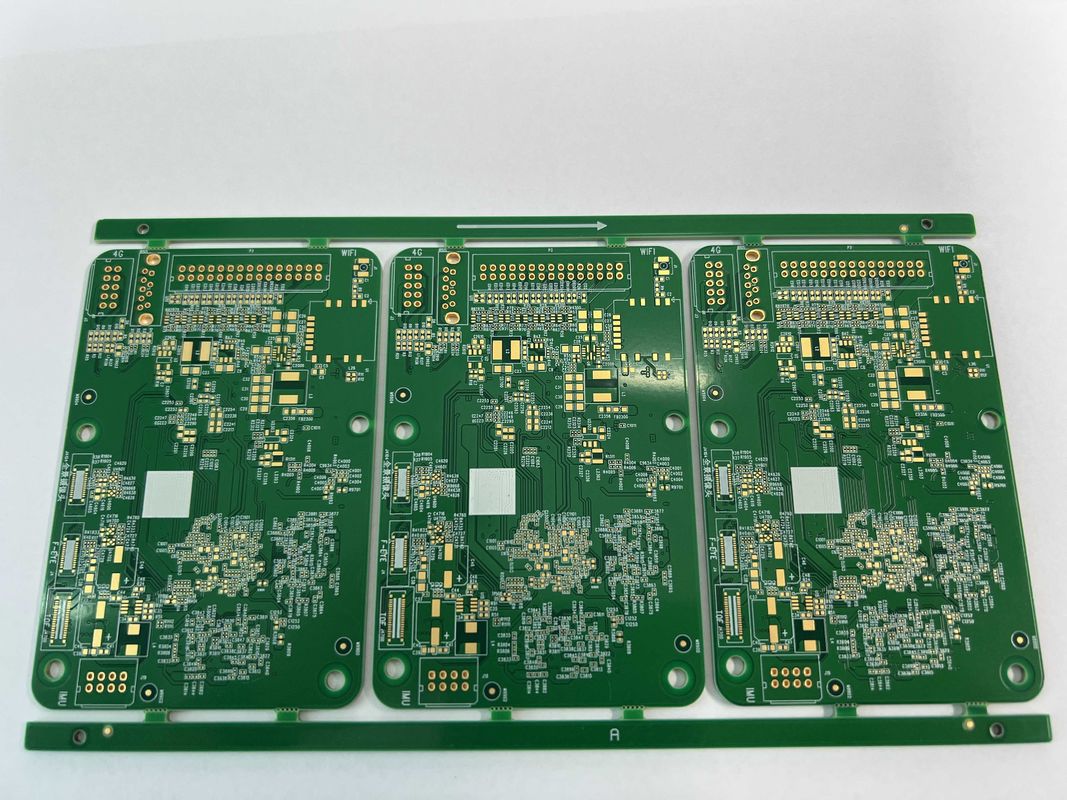

High Density Interconnector HDI Printed Circuit Boards with Min Trace 3/3Mil

High Density Interconnector HDI Printed Circuit Boards with Min Trace 3/3Mil

3/3Mil HDI Printed Circuit Boards

Min Trace HDI Printed Circuit Boards

Contact Us
Request A Quote
Product Details
Key Words:
High Density Interconnector
Testing:
100%E-Testing,X-RAY
Aspect Ratio:
10:1
Pcb Name:
4L 1+N+1 HDI Boards
Board Thickness:
0.2mm-6.00 Mm(8mil-126mil)
Minimum Hole Size:
0.15mm
Raw Material:
FR4 IT180
Hole Size:
0.1mm Laser Drill
Highlight:

3/3Mil HDI Printed Circuit Boards

,

Min Trace HDI Printed Circuit Boards

Payment & Shipping Terms
Product Description

Product Description:

The HDI PCB Board is a cutting-edge product designed to meet the demanding requirements of modern electronic devices. Featuring advanced technology and high-quality materials, this product is ideal for applications that demand superior performance and reliability.

One of the key features of the HDI PCB Board is its impedance control, which ensures stable signal transmission and minimizes interference. This makes it an excellent choice for high-speed and high-frequency applications, such as DDR4 PCBs.

The board is built with a hole size of 0.1mm using a precision laser drill, allowing for intricate designs and tight component placement. This level of precision is essential for creating a High-Density Interconnect (HDI) PCB, which is known for its compact size and high routing density.

With a board thickness ranging from 0.2mm to 6.00mm (8mil to 126mil), the HDI PCB Board offers flexibility in design and can accommodate various form factors and requirements. Whether you need a thin and lightweight board or a thicker, more robust one, this product can be customized to meet your specific needs.

In addition to its technical specifications, the HDI PCB Board also caters to special requirements such as a lamp socket. This feature allows for easy integration of lighting components, making it suitable for applications that require illumination or visual indicators.

Constructed from high-quality raw materials, specifically FR4 IT180, the HDI PCB Board offers excellent thermal stability, mechanical strength, and electrical performance. This ensures that your electronic devices operate reliably and efficiently, even under challenging conditions.

Overall, the HDI PCB Board is a top-of-the-line product that combines advanced technology, precise manufacturing, and high-quality materials to deliver exceptional performance. Whether you are designing a DDR4 PCB, a high-density model board, or an HDI PCB, this product is the perfect choice for your next project.



Features:

  • Product Name: HDI PCB Board
  • Special Request: Half Hole, 0.25mm BGA
  • Impedance Control: Yes
  • Pcb Name: 4L 1+N+1 HDI Boards
  • Special Requirements: Lamp Socket
  • Layer Count: 4-20 Layers


Technical Parameters:

Hole Size 0.1mm Laser Drill
Special Requirements Lamp Socket
Minimum Hole Size 0.15mm
Raw Material FR4 IT180
Min Trace 3/3Mil
Aspect Ratio 10:1
Testing 100%E-Testing, X-RAY
Board Layer 6-32L
Board Thickness 0.2mm-6.00 Mm(8mil-126mil)
Layer Count 4-20 Layers


Applications:

The Hole Size of 0.1mm achieved through Laser Drill technology enables the HDI PCB boards to accommodate intricate designs and complex circuitry, making them suitable for advanced electronic devices and systems. The use of FR4 IT180 as the raw material further enhances the durability and performance of the boards, ensuring long-term stability in demanding environments.

With Layer Counts ranging from 4 to 20 layers, HDI PCB boards offer flexibility in design and functionality, making them suitable for both compact and large-scale applications. The high-density interconnections in these boards contribute to improved signal integrity and reduced electromagnetic interference, making them essential for high-speed PCB applications.

Key words such as "High Density Interconnector" aptly describe the essence of HDI PCB boards and highlight their capability to support complex interconnections in electronic systems. These boards are ideal for use in scenarios that require high-speed data processing, such as telecommunications, aerospace, automotive, and industrial automation.

Whether it's designing cutting-edge communication devices, advanced medical equipment, or high-performance computing systems, HDI PCB boards excel in delivering the necessary performance, reliability, and efficiency. Their advanced features cater to the evolving demands of modern technology, making them indispensable components in various product development projects.



Customization:

For the HDI PCB product, we offer customizable services to meet your specific requirements:

Aspect Ratio: 10:1

Layer Count: 4-20 Layers

Raw Material: FR4 IT180

Min Trace: 3/3Mil

Testing: 100%E-Testing, X-RAY



Support and Services:

The Product Technical Support and Services for the HDI PCB Board product include: - Expert technical support for any issues related to the HDI PCB Board. - Troubleshooting assistance for installation and operation of the board. - Regular software updates and patches to ensure optimal performance. - Repair and maintenance services to prolong the lifespan of the HDI PCB Board. - Training resources and documentation for users to maximize the capabilities of the product.
