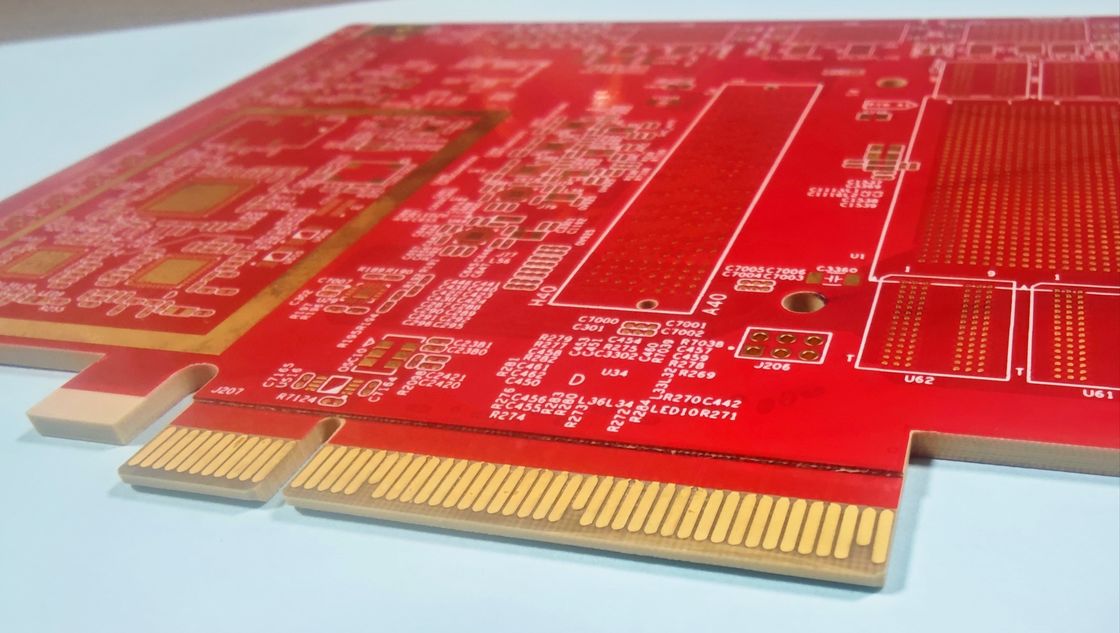

0.1mm Laser Drill Hole Size HDI PCB Board for Density Electronic Devices Thickness 0.4-3.2mm Raw Material FR4 IT180

0.1mm Laser Drill Hole Size HDI PCB Board for Density Electronic Devices Thickness 0.4-3.2mm Raw Material FR4 IT180

Contact Us
Request A Quote
Product Details
Layer Count:
4-20 Layers
Testing:
100%E-Testing,X-RAY
Pcb Name:
4L 1+N+1 HDI Boards
Board Layer:
6-32L
Thickness:
0.4-3.2mm
Special Request:
Half Hole, 0.25mm BGA
Key Words:
High Density Interconnector
Min Trace:
3/3Mil
Payment & Shipping Terms
RELATED PRODUCTS
Contact Us
Product Description

Product Description:

Our HDI PCB Board goes through a rigorous 100% E-Testing process, ensuring quality and consistency. Additionally, we utilize X-RAY testing to further ensure the integrity of our product.

With a minimum trace of 3/3Mil, our HDI PCB Board offers exceptional precision and accuracy. The aspect ratio of 10:1 allows for greater flexibility in design, enabling engineers to create more complex circuits with ease.

The thickness of our HDI PCB Board ranges from 0.4 to 3.2mm, providing greater options for application-specific designs. And with impedance control, our product ensures excellent signal integrity and reduced noise.

Our HDI PCB Board is the perfect solution for DDR4 PCB designs, offering unparalleled performance and reliability. With its advanced features and capabilities, our product is the ideal choice for high-density interconnect applications.



Features:

  • Product Name: HDI PCB Board
  • Impedance Control: Yes
  • Board Thickness: 0.2mm-6.00 Mm(8mil-126mil)
  • PCB Name: 4L 1+N+1 HDI Boards
  • Raw Material: FR4 IT180
  • Key Words: High Density Interconnector

High Density Model Board, HD SDI Converter, High Speed PCB Board



Technical Parameters:

Technical Parameter Value
Product Type High Density Interconnector (HDI) PCB Board
Thickness 0.4-3.2mm
Special Requirements Lamp Socket
Minimum Trace Width/Spacing 3/3Mil
Key Words High Speed PCB Board, High Density Model Board, High Density Model Board
Minimum Hole Size 0.15mm
Raw Material FR4 IT180
Impedance Control Yes
Board Layer 6-32L
Layer Count 4-20 Layers
Testing 100% E-Testing, X-RAY


Applications:

The High Density Interconnector (HDI) PCB Board is a revolutionary technology in the field of electronics. It offers numerous benefits that make it ideal for a wide range of applications, including:

  • HD SDI Converter: The HDI PCB Board is a perfect fit for HD SDI converters. Its high density interconnect design allows for the transmission of high-speed signals with minimal loss. It also has excellent impedance control, ensuring that the signal remains stable throughout the transmission process.
  • High Speed PCB: The HDI PCB Board is designed for high-speed applications. Its minimum hole size of 0.15mm and 10:1 aspect ratio allow for the creation of dense, complex circuitry that can handle high-speed signals without interference. It also has a hole size of 0.1mm laser drill, which enables the creation of micro-vias that further increase the board's density.
  • HDI PCB Board: The HDI PCB Board is specifically designed for use in high-density interconnect applications. It is ideal for use in applications where space is limited, such as mobile devices, drones, and other compact electronics. Its high-density interconnect design allows for the creation of smaller, more compact PCBs that can handle complex circuitry.

The HDI PCB Board is also suitable for use in a wide range of other applications, including:

  • Smart home devices
  • Automotive electronics
  • Medical devices
  • Aerospace electronics
  • Industrial electronics

Overall, the HDI PCB Board is a versatile technology that can be used in a wide range of applications. Its high-density interconnect design, minimum hole size of 0.15mm, 10:1 aspect ratio, and excellent impedance control make it an ideal choice for high-speed and high-density applications.



Customization:

Our HDI Printed Circuit Boards (PCBs) are designed to meet the most demanding requirements of high density model board applications. We offer HDI PCB Manufacturing services that include customization options to meet your specific needs.

The 4L 1+N+1 HDI Boards are equipped with a lamp socket and designed with special requirements such as half hole and 0.25mm BGA. The hole size is 0.1mm laser drill and the aspect ratio is 10:1.



Support and Services:

Our HDI PCB Board product comes with comprehensive technical support and services to ensure that you have a smooth and successful experience with our product. Our team of experts is always available to answer any questions you may have regarding the installation, operation, maintenance, and troubleshooting of the product. We also offer training sessions and online resources to help you maximize the performance of the product. Our services include PCB design, layout, fabrication, assembly, and testing, all provided with the highest level of quality and precision. We are committed to providing exceptional customer service and support, and we are always here to help you with any issues you may encounter.
