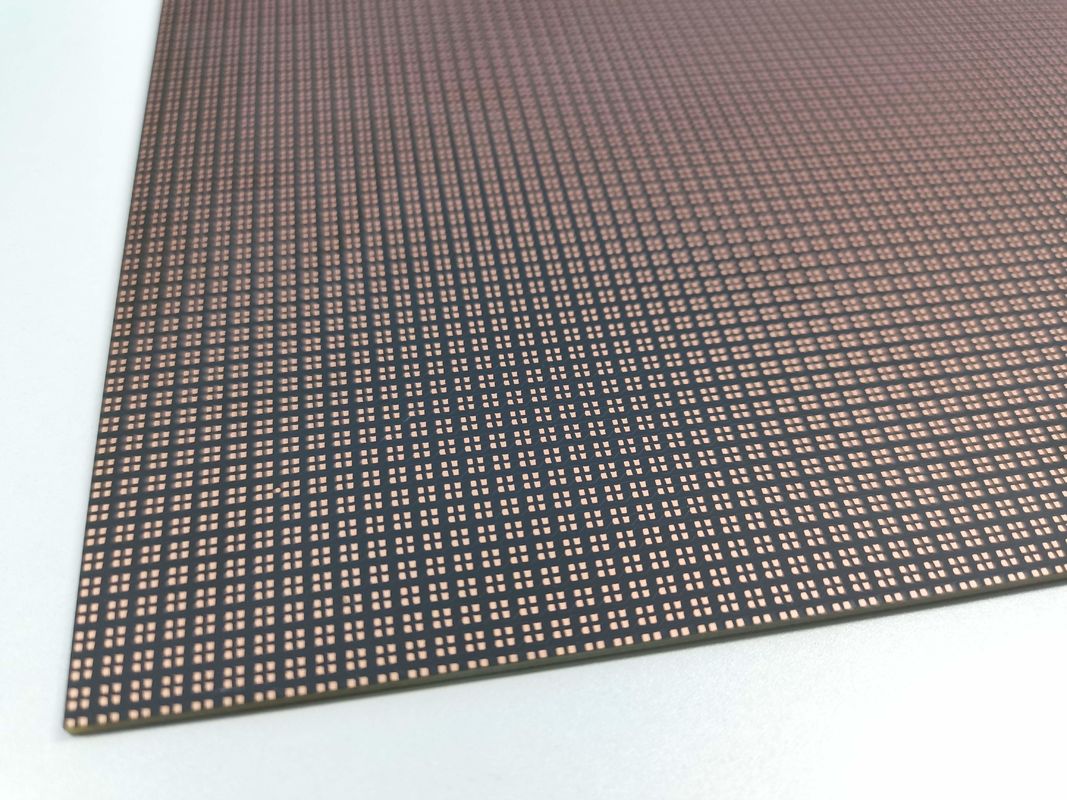

One of the key features of our HDI PCB Board is its impedance control. This ensures that the signals passing through the board are not distorted, resulting in a more reliable and accurate performance. With our HDI PCB Board, you can be confident that your device will function at its best.
Our HDI PCB Board is available in a range of board layers, from 6 to 32 layers, giving you flexibility in your design. Additionally, the board thickness can be customized to your specific requirements, with a range of 0.4mm to 3.2mm. This versatility allows you to create a board that is tailored to your device's needs.
For those who require a thinner board, we offer a board thickness range of 0.2mm to 6.00mm (8mil-126mil). This is ideal for devices where space is at a premium, and a thinner board is necessary to fit within the device's casing.
Finally, our HDI PCB Board is capable of meeting special requirements, such as a lamp socket. This means that you can create a board that meets your specific needs, without having to compromise on functionality.
Overall, our HDI Printed Circuit Boards are the perfect choice for anyone looking for a high-quality, reliable board for their device. With the ability to customize the board to your specific requirements, you can be confident that our HDI PCB Board will meet your needs.
| Board Thickness | 0.2mm-6.00 Mm(8mil-126mil) |
| Minimum Hole Size | 0.15mm |
| Min Trace | 3/3Mil |
| Key Words | High Density Interconnector (HDI) PCB Board, HDI PCB Manufacturing, High Density Model Board |
| Layer Count | 4-20 Layers |
| Special Request | Half Hole, 0.25mm BGA |
| Aspect Ratio | 10:1 |
| Testing | 100%E-Testing,X-RAY |
| Special Requirements | Lamp Socket |
| Raw Material | FR4 IT180 |
The HDI PCB Board product is perfect for use in DDR4 PCB applications, where high-speed data transfer is required. The board's design ensures that signal integrity is maintained, reducing the risk of signal loss or distortion. This makes it perfect for use in communication systems, high-end computing, and data storage systems.
The product's layer count of 4-20 layers also makes it suitable for use in complex applications where multiple circuits need to be integrated on one board. The board's design ensures that it is compact and efficient, reducing the footprint of the overall system.
The HDI PCB Board product also has special requirements that make it ideal for use in lamp socket applications. The board's design ensures that it can handle high currents without overheating, making it perfect for use in lighting systems. The product's high thermal stability ensures that the board can operate in high-temperature environments without degrading performance.
In summary, the HDI PCB Board product is versatile and can be used in various application occasions and scenarios. Whether you need a high-speed PCB board or a PCB board for lamp socket applications, the HDI PCB Board product has got you covered.
Our HDI Printed Circuit Boards (PCB) are designed to meet your specific needs. We offer product customization services to ensure that your HDI PCB meets your requirements. With our product customization services, you can expect:
Our HDI PCB boards are perfect for high-speed PCB applications. Contact us today to learn more about our product customization services and how we can help you with your HDI PCB needs.
Our HDI PCB Board product comes with exceptional technical support and services to ensure smooth operation and maximum performance. Our team of experts is always available to answer any questions and provide guidance on installation, maintenance, and troubleshooting.
We offer comprehensive training to help you get the most out of your HDI PCB Board product. Our training program covers everything from product features and functionality to best practices for optimal performance. We also provide custom training tailored to your specific needs.
Our services include PCB layout design, PCB fabrication, assembly, and testing. We use advanced technology and equipment to ensure that our products meet the highest standards of quality and reliability. We also offer customization services to meet your unique requirements.
If you experience any issues with your HDI PCB Board product, our technical support team is available to help. We offer remote troubleshooting and onsite support to quickly resolve any problems you may encounter.
