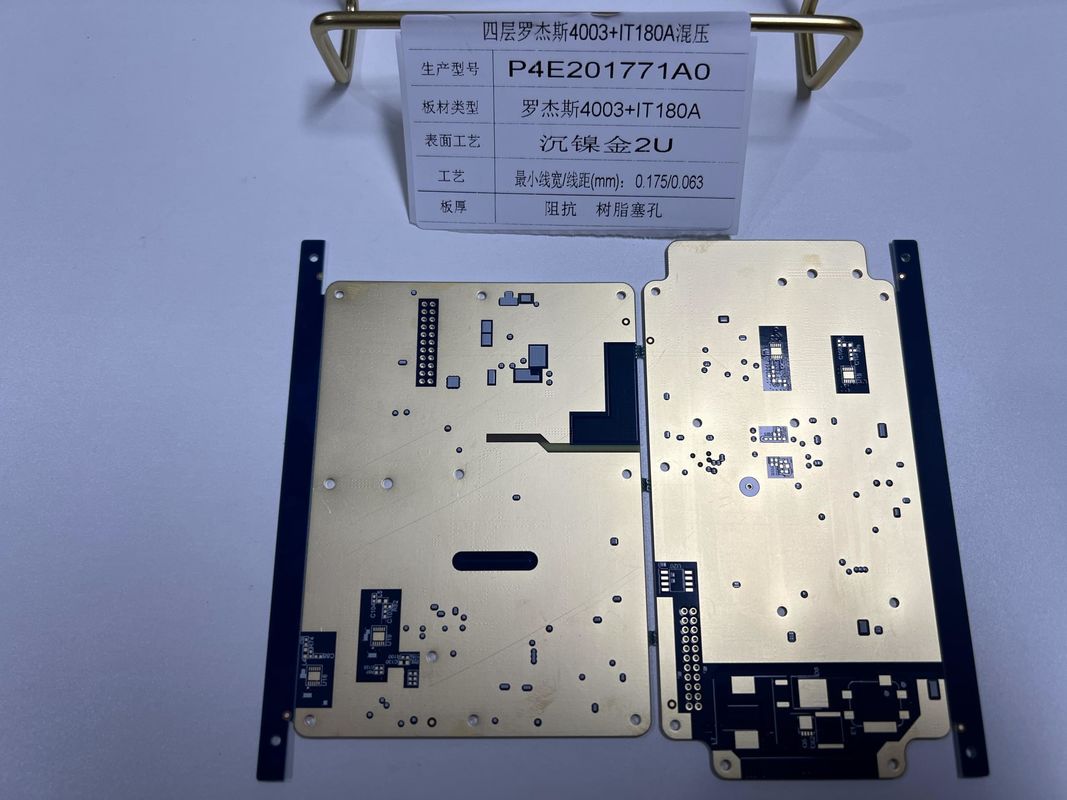

Rogers RO4003+IT180 Mixture Rogers PCB Board 0.5-6oz Copper Immersion Gold Finish

Rogers RO4003+IT180 Mixture Rogers PCB Board 0.5-6oz Copper Immersion Gold Finish

Rogers PCB Board Immersion Gold

6oz Copper Rogers PCB Board

Immersion Gold rogers circuit board

Contact Us
Request A Quote
Product Details
Test:
100% Electrical Test Prior Shipment
Silkscreen Color:
White, Black, Yellow
Dielectric Constant:
2.55-10.2
Size:
According To Customer Request
Copper Thickness:
0.5-6oz
Surface Finish:
HASL, ENIG, OSP, Immersion Silver, Immersion Tin, Hard Gold
Pcbthickness:
1.6mm
Material:
Rogers R4350B
Payment & Shipping Terms
RELATED PRODUCTS
Contact Us
Contact Now
Product Description

Frequency Rogers RO4003+IT180 mixture Rogers PCB Board 0.5-6oz Copper Immersion Gold Finish

Product Description:

The Rogers PCB Board is a high-performance printed circuit board (PCB) designed to meet the demanding requirements of high-frequency and high-speed applications. This board is crafted using the Rogers 4350B material, which is well-known for its superior electrical properties and reliability. With a dielectric constant (Dk) ranging from 2.55 to 10.2, this PCB provides excellent signal integrity, making it ideal for a variety of RF, microwave, and millimeter-wave applications.

The base material used for the Rogers PCB Board is CLTE-XT, with a standard thickness of 1.016mm, which provides a robust platform for the circuitry. To cater to the versatile needs of different applications, the Rogers PCB Board comes with a variety of surface finishes. Options include Hot Air Solder Leveling (HASL), Electroless Nickel Immersion Gold (ENIG), Organic Solderability Preservative (OSP), Immersion Silver, Immersion Tin, and Hard Gold. This range of surface finishes enables the Rogers PCB Board to be suitable for various soldering processes and ensures long-term reliability and performance.

With its 1.6mm PCB thickness, the Rogers PCB Board delivers a stable mechanical structure for a wide array of electronic components. The use of Rogers 4350B PCB material not only enhances the mechanical durability but also contributes to the consistent dielectric performance across the board. This consistency is particularly critical in high-frequency designs where any variation in Dk can lead to signal distortion or loss.

The Rogers High Frequency Printed Board boasts a coverlay color of vibrant yellow, which not only provides a distinct appearance but also offers high contrast for easy inspection and quality control during the manufacturing and assembly processes. The bright yellow coverlay aids in the identification of any potential defects or issues before the board is put into service, thereby enhancing the overall quality and reliability of the final product.

Designers and engineers who require a PCB with exceptional electrical performance and stability often turn to the Rogers 4350B PCB for their projects. Its low electrical loss is particularly advantageous for high-frequency applications, allowing for more efficient signal transmission and reducing the overall power consumption of the system. Moreover, the Rogers 4350B material exhibits low moisture absorption, which is crucial for maintaining performance in varying environmental conditions.

The Rogers PCB Board's robust construction and high reliability make it an excellent choice for applications such as power amplifiers, antennas, radar systems, and communication systems. Whether used in aerospace, defense, automotive, or telecommunications sectors, this PCB stands up to the challenges of extreme operating conditions and demanding performance criteria.

In summary, the Rogers PCB Board, constructed from Rogers 4350B material, represents a superior choice for designers looking for high-frequency PCBs. With its precise dielectric constant, range of surface finishes, and stable mechanical properties, this PCB is set to deliver outstanding performance in the most challenging environments. Its high-quality standards and versatility make it a go-to option for those seeking reliability and efficiency in their high-frequency electronic designs.



Features:

  • Product Name: Rogers PCB Board
  • Material: Rogers R4350B
  • Test: 100% Electrical Test Prior Shipment
  • Surface Finish: HASL, ENIG, OSP, Immersion Silver, Immersion Tin, Hard Gold
  • Function: 100% Pass Electrical Test
  • Size: According To Customer Request
  • Keywords: Rogers RF Circuit Board
  • Keywords: Rogers Electronic Printed Board
  • Keywords: Rogers 4350B PCB


Technical Parameters:

Parameter Specification
Test 100% Electrical Test Prior Shipment
Function 100% Pass Electrical Test
Size According To Customer Request
Silkscreen White
Dielectric Constant 2.55-10.2
Pcbthickness 1.6mm
Glass Epoxy RO4730G3 0.762mm
Coverlay Colour Yellow
Copper Thickness 0.5-6oz
Based Material CLTE-XT 1.016mm


Applications:

The Rogers PCB Board, specifically designed with CLTE-XT with a 1.016mm base material, is a high-performance solution for various demanding applications. The board comes with a copper thickness ranging from 0.5 to 6oz, making it suitable for a wide range of current carrying requirements. This versatility ensures that whether in low or high-power scenarios, the Rogers PCB maintains excellent conductivity and thermal management. Manufactured from Rogers R4350B material, it exemplifies a Rogers High Frequency Printed Board's durability and reliability.

With a choice of solder mask colors including green, black, blue, yellow, and red, these boards can be customized to meet aesthetic requirements or color-coded for functional purposes in complex systems. This customization is particularly beneficial in applications where visual identification helps in maintenance or assembly processes. The surface finishes available for this product, such as HASL, ENIG, OSP, Immersion Silver, Immersion Tin, and Hard Gold, cater to various industry standards and ensure robust protection against oxidation and other environmental factors.

The Rogers Electronic Printed Board finds its application in high-frequency scenarios such as in microwave and RF designs, where signal integrity is paramount. The inherent low dielectric loss and stable dielectric constant of the Rogers R4350B material make it an ideal candidate for critical communication equipment, aerospace navigation systems, and sophisticated radar applications. Furthermore, its high thermal performance ensures reliability in high-temperature environments or where high power densities are present.

Moreover, the Rogers+FR4 Multilayer PCB combines the high-frequency performance of Rogers materials with the mechanical stability and cost-effectiveness of FR4 materials. This makes it especially suitable for mixed dielectric multilayer boards that are required in advanced electronics where space is at a premium. Such applications include multilayer circuits in smartphones, complex industrial sensors, and high-speed digital servers.

Overall, the Rogers PCB Board with its robust material properties and finish options is an excellent choice for applications that demand high reliability, superior electrical performance, and versatility. Whether used in the realms of telecommunications, aerospace, automotive radar systems, or high-speed digital interfaces, the Rogers PCB Board can be relied upon to deliver consistent performance in the most challenging environments.



Customization:

The Rogers PCB Board is a state-of-the-art High Frequency Printed Circuit Board tailored to meet your specific design requirements. Constructed from high-quality Glass Epoxy: RO4730G3 0.762mm , our boards ensure superior performance and durability.

Customize your board with ease, as we provide options for the Size to be According To Customer Request , ensuring a perfect fit for any application. The precision-engineered Pcbthickness is standard at 1.6mm , offering an optimal balance of robustness and flexibility.

Our product features a vibrant Coverlay Colour: Yellow , enhancing the visual appeal and simplifying circuit identification. With a Copper Thickness ranging from 0.5-6oz , our boards are versatile for various electronic applications, whether you require minimal or extensive copper weight.

Experience the reliability of the Rogers+FR4 Multilayer PCB , combining the benefits of Rogers material with the versatility of FR4. This amalgamation results in a Rogers High Frequency Printed Board that excels in performance for high-frequency applications.



Support and Services:

Rogers PCB Boards are known for their high-quality materials and performance, ensuring reliability for a wide range of applications. Our technical support and services are designed to assist you throughout the lifecycle of your Rogers PCB product. Our team of experts provides guidance on product selection, design optimization, and troubleshooting to ensure your Rogers PCB meets your specific needs and operates at peak performance.

If you encounter any issues or have questions regarding your Rogers PCB Board, our technical support team is ready to assist you. We offer comprehensive services, including fault diagnosis, repair recommendations, and guidance on best practices for board handling and maintenance. Our goal is to provide you with the support you need to maximize the life and functionality of your Rogers PCB Board.

For design engineers, we provide detailed documentation, including datasheets and application notes that contain valuable information on material properties, design guidelines, and thermal management strategies. Our technical support services also include helping you to understand the unique benefits of Rogers materials, such as their superior dielectric constant stability and low loss characteristics, which are essential for high-frequency applications.

Please note that our technical support and services do not include direct contact information within this description. To access support, you may reach out to our customer service team through the official Rogers PCB Board website or your local distributor. We are committed to providing exceptional service to ensure your complete satisfaction with our products.
