Print Circuit Board Production Simplified with Multilayer PCB Board and Multiclass Impedance

Product Description:

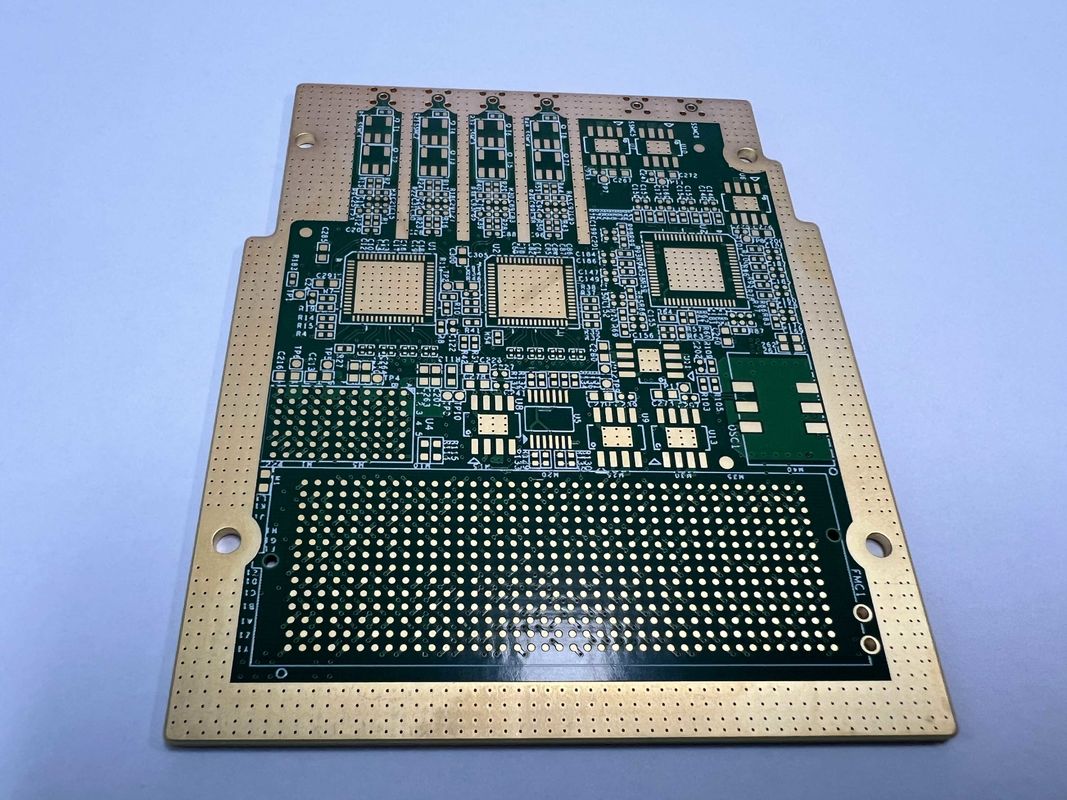

Introducing our high-quality Multilayer PCB Board product, perfect for a wide range of electronic applications. This advanced PCB board features a total of 20 layers, providing exceptional performance and reliability.

The Multilayer PCB Board is constructed with a copper thickness of 1oz on each layer, ensuring excellent conductivity and signal integrity. This copper configuration is ideal for demanding applications that require high-speed data transmission and reliable power distribution.

One of the key features of the Multilayer PCB Board is its impressive minimum hole diameter of 0.10mm. This tight tolerance allows for intricate and compact designs, making it suitable for applications that require densely populated components and fine pitch connections.

With a minimum panel size of 50mm x 50mm, the Multilayer PCB Board offers flexibility in design and layout options. This size requirement enables the creation of compact and space-efficient electronic devices while maintaining the structural integrity and stability of the PCB board.

For added customization and visual appeal, the Multilayer PCB Board is available with silkscreen color options in white, black, and yellow. This allows for easy component identification, labeling, and branding, enhancing the overall aesthetics and functionality of the PCB board.

When it comes to assembly options, the Multilayer PCB Board supports both Surface Mount Technology (SMT) and Through-Hole assembly processes. This versatility in assembly types caters to a wide range of component types and mounting preferences, making it suitable for diverse electronic applications.

Whether you require a complex 20-layer PCB for high-performance applications or a more streamlined 10-layer PCB for standard projects, our Multilayer PCB Board offers the reliability, precision, and quality you need.

Features:

• Product Name: Multilayer PCB Board
• Test: 100% Electrical Test Prior Shipment
• Samples: Available
• Special Requirements: Multiclass Impedance
• Silkscreen Color: White, Black, Yellow
• Special Requirement: Impedance Control Test

Technical Parameters:

Applications:

The Multilayer PCB Board is a versatile product that finds application in a wide range of scenarios due to its various attributes. One key feature of this product is its Copper Weight range of 0.25OZ to 12OZ, allowing for flexibility in design and functionality. This makes it suitable for use in complex electronic devices that require different copper weights for optimal performance.

With a 100% Electrical Test Prior Shipment, customers can be assured of the quality and reliability of the Multilayer PCB Board. This attribute is particularly valuable for applications where precision and consistency are paramount, such as in medical equipment, aerospace systems, and telecommunications infrastructure.

The Surface of the Multilayer PCB Board is coated with Immersion Gold, providing excellent conductivity and corrosion resistance. This makes it ideal for use in high-frequency applications, such as wireless communication devices and radar systems, where signal integrity is crucial.

For customers looking to evaluate the product before making a bulk purchase, Samples of the Multilayer PCB Board are readily available. This allows for testing and validation in specific use cases, ensuring that the product meets the required specifications and performance standards.

Additionally, the Multilayer PCB Board offers customization options for Silkscreen Color, with choices including White, Black, and Yellow. This feature not only enhances the visual appeal of the product but also enables easy identification and labeling of components, making it suitable for applications requiring clear and organized circuit layouts.

In summary, the Multilayer PCB Board is a reliable and adaptable solution for a variety of product application occasions and scenarios. Whether it's for designing 12 Layers PCBs, 14 Layers PCBs, or other complex electronic systems, this product offers the necessary features and performance attributes to meet the demands of modern technology.

Customization:

Product Customization Services for Multilayer PCB Board:

Copper: 1/1/1/1/1/1oz

Product: Print Circuit Board

Solder Mask Color: Green, Red, Blue, Black

Test: 100% Electrical Test Prior Shipment

Minimum Hole Diameter: 0.10 Mm

Customize your PCB with different layer options including 18 Layers PCBs, 12 Layers PCBs, and 10 Layers PCBs.

Support and Services:

Product Technical Support and Services for Multilayer PCB Board:

Our technical support team is available to assist with any inquiries related to the Multilayer PCB Board product. We offer comprehensive services to ensure the optimal performance and functionality of the boards. These services may include troubleshooting, product documentation, software updates, and more.
