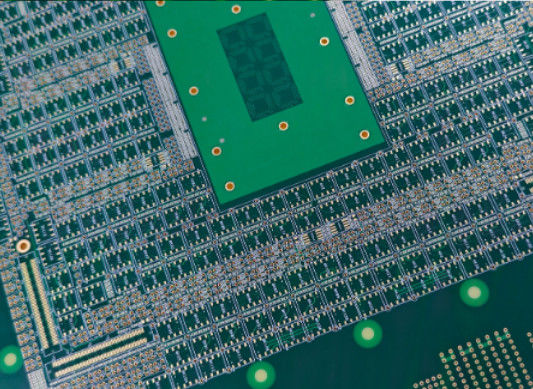

Customizable HDI Any Layer PCBs with FR-4 Material Minimum Hole Size 0.1mm Copper Weight 0.5oz-6oz

Customizable HDI Any Layer PCBs with FR-4 Material Minimum Hole Size 0.1mm Copper Weight 0.5oz-6oz

Contact Us
Request A Quote
Product Details
Layer Count:
Any Layer
Testing:
Flying Probe Test, E-test
Min. Annular Ring:
3mil
Impedance Control:
Yes
Solder Mask Color:
Green, Red, Blue, Black, Yellow, White
Thickness:
0.2mm-6.0mm
Copper Weight:
0.5oz-6oz
Silkscreen Color:
White, Black, Yellow
Payment & Shipping Terms
RELATED PRODUCTS
Contact Us
Product Description

Product Description:

Our High-Density Wiring Board is built to handle even the most intricate designs, with a minimum line width/spacing of 3mil/3mil. Plus, our Solder Mask Color options, including Green, Red, Blue, Black, Yellow, and White, allow you to customize your board to fit your needs. Whether you're designing a prototype or a full-scale production run, our High-Density Interconnect Board is the perfect solution.



Features:

  • Product Name: HDI Any Layer PCBs
  • Lead Time: 2-5 Days
  • Impedance Control: Yes
  • Thickness: 0.2mm-6.0mm
  • Minimum Hole Size: 0.1mm
  • Material: FR-4
  • Miniature Interconnect System: Yes
  • High-Density Integrated Circuit Interconnection Board: Yes
  • High-Density Assembly System: Yes


Technical Parameters:

Product Attribute Specification
Product Name High Density Interconnect Any Layer (HDI Any Layer) PCBs
High-Density Interconnect Board Yes
Solder Mask Color Green, Red, Blue, Black, Yellow, White
Copper Weight 0.5oz-6oz
Layer Count Any Layer
Minimum Line Width/Spacing 3mil/3mil
Silkscreen Color White, Black, Yellow
Surface Finish HASL, ENIG, Immersion Silver, OSP
Impedance Control Yes
Min. Finished Hole Size 0.1mm
Material FR-4
Minimum Hole Size 0.1mm


Applications:



Customization:

  • Layer Count: Any Layer
  • Min. Annular Ring: 3mil
  • Minimum Hole Size: 0.1mm
  • Silkscreen Color: White, Black, Yellow
  • Copper Weight: 0.5oz-6oz


Support and Services:

The HDI Any Layer PCBs product offers technical support and services to ensure high-quality performance and reliability. Our team of experts provides assistance with design, layout, and fabrication to meet customer requirements. We also offer comprehensive testing and inspection services to ensure that the product meets all necessary standards and specifications.

Our technical support team is available to assist with product inquiries, troubleshooting, and any issues that may arise during the manufacturing process. We also offer training and educational resources to help customers optimize their use of the HDI Any Layer PCBs product.

Our commitment to customer satisfaction extends beyond the initial sale. We offer ongoing technical support and maintenance services to ensure that our customers are satisfied with their product and that it continues to perform at the highest level possible.
