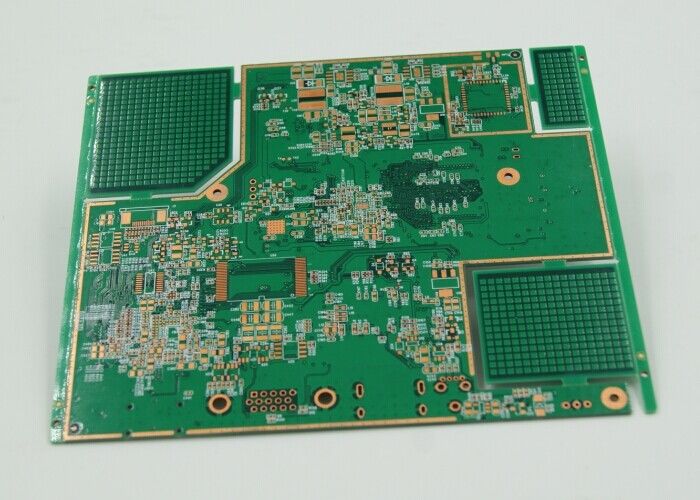

Electronics Multilayer PCB Board Glass Epoxy FR-4 One Stop OEM Service

Electronics Multilayer PCB Board Glass Epoxy FR-4 One Stop OEM Service

Multilayer PCB Board OEM Service

OEM Service multilayer circuit board

Electronics Multilayer PCB Board

Contact Us
Request A Quote
Product Details
Copper Thickness:
0.5oz-6oz
Copper Weight:
12OZ
Service:
One-stop Service OEM
Max. Panel Size:
600mm*1200mm
Min. Hole Size:
0.2mm
Glass Epoxy:
RO4003C+ Tg170 FR-4
Number Of Layers:
4-22 Layers
Thickness:
0.2mm-6.0mm
Payment & Shipping Terms
RELATED PRODUCTS
Contact Us
Contact Now
Product Description

Copper Weight 2OZ Multilayer PCB Board Glass Epoxy FR-4 One stop OEM Service

Product Description:

The Multilayer PCB Board, designed with precision engineering and cutting-edge technology, is a state-of-the-art solution for a wide array of electronic applications. As the demand for compact yet highly functional electronics continues to grow, our product stands out with its robust construction and exceptional performance. This product summary will delve into the core attributes of our Multilayer PCB Board, highlighting its superior materials, extensive size, and comprehensive services, as well as its versatile surface finish options and substantial copper thickness range.

At the heart of our Multilayer PCB Board lies the use of high-quality Glass Epoxy materials, specifically RO4003C+ Tg170 FR-4. This combination ensures that the board exhibits excellent thermal resistance, mechanical strength, and electrical insulation properties. The Tg170 rating indicates a high glass transition temperature, which means that the board maintains its integrity and performance even under thermal stress. The RO4003C material is renowned for its low dielectric loss, making it suitable for high-frequency applications, delivering consistent signal integrity across the 14 Layers PCBs and 16 Layers PCBs.

Understanding the varied needs of our customers, we offer a Max. Panel Size of 600mm*1200mm, providing ample space for complex circuitry and accommodating large-scale electronic designs. This generous sizing capability allows for greater flexibility in PCB design and layout, ensuring that we can cater to the most demanding and intricate Multilayer Printed Board requirements.

Our service does not end with just the provision of high-quality PCBs; we offer a One-stop Service OEM, streamlining the production process for our clients. From conceptual design to final production, our expert team is on hand to ensure a seamless experience. We take care of all the details, allowing our customers to focus on their core business activities with the confidence that their PCB needs are being expertly managed.

The surface finish of a PCB is critical to its performance and longevity, and our Multilayer PCB Board comes with a plethora of options to meet the specific needs of any application. Our surface finishes include HASL (Hot Air Solder Leveling), Immersion Gold, Immersion Tin, Immersion Silver, Gold Finger, and OSP (Organic Solderability Preservatives). Each of these finishes offers distinct benefits, such as enhancing solderability, reducing oxidation, and ensuring reliable electrical connections. Whether the application requires excellent conductivity, wear resistance, or extended shelf life, our surface finish options are designed to exceed expectations.

Catering to high-current applications, our PCBs come with a Copper Thickness range of 0.5oz to 6oz. This variability in copper weight allows our boards to be customized for different power requirements, ensuring optimal performance for both the 14 Layers PCBs and 16 Layers PCBs. A thicker copper layer means a greater current-carrying capacity and improved thermal management, which is crucial for maintaining the reliability and efficiency of the electronic components.

In conclusion, our Multilayer PCB Board is a perfect blend of quality materials, extensive size options, comprehensive services, versatile surface finishes, and a wide range of copper thicknesses. Whether you are looking for 14 Layers PCBs or 16 Layers PCBs, our product is engineered to meet the exacting standards of modern electronics. With our commitment to excellence and customer satisfaction, we are confident that our Multilayer Printed Board will be an indispensable component in your electronic ventures.



Features:

  • Product Name: Multilayer PCB Board
  • Max. Panel Size: 600mm*1200mm
  • Size: /
  • Packing: Vacuum Packing With Carton Box
  • Copper Weight: 12OZ
  • Min. Hole Size: 0.2mm
  • Keywords: Multilayer PCB Board, Multilayer Printed Circuit Board, 14 Layers PCBs


Technical Parameters:

Parameter Details
Number Of Layers 4-22 Layers
Service One-stop Service OEM
Surface Mount Technology Yes
Thickness 0.2mm-6.0mm
Min. Hole Size 0.2mm
Packing Vacuum Packing With Carton Box
Surface HASL, Immersion Gold, Immersion Tin, Immersion Silver, Gold Finger, OSP
Layers 4-22 Layer
Size /
Glass Epoxy RO4003C+ Tg170 FR-4


Applications:

The Multilayer PCB Board, with its versatile range of 4-22 layers, caters to a broad spectrum of applications across various industries. As technology advances, the demand for boards with higher layer counts, such as 16 Layers PCBs and 18 Layers PCBs, has increased, reflecting the need for more complex and denser circuitry in smaller footprints.

These Multilayer Circuitry Boards are particularly essential in high-speed applications where signal integrity and impedance control are critical. With a minimum hole size of 0.2mm, they offer the precision required for intricate designs where space is at a premium. The copper thickness options ranging from 0.5oz to 6oz allow for the customization of the board to suit power distribution requirements, ensuring that each layer functions optimally without compromise on performance.

The surface finish is a crucial aspect of the Multilayer PCB Board product, with options such as HASL, Immersion Gold, Immersion Tin, Immersion Silver, Gold Finger, and OSP. These finishes not only provide the necessary protection against oxidation but also ensure reliable solderability and wire bondability. This is particularly important in scenarios where long-term reliability is a defining factor, such as in the aerospace and defense industries, where Multilayer Circuitry Boards are used extensively.

16 Layers PCBs and 18 Layers PCBs find their usage in complex computing systems like servers and data centers, where multiple processors and high-speed memory components require efficient interconnections. The multilayer design accommodates the dense routing of signals, power, and ground layers to minimize electromagnetic interference and crosstalk, which is vital for maintaining the integrity of high-speed data.

Moreover, the medical industry utilizes these high-layer-count PCBs in critical medical imaging and diagnostic equipment. The precision and reliability of Multilayer Circuitry Boards ensure that devices such as MRI machines, CT scanners, and ultrasound devices perform at the highest standards with consistent results.

In the field of telecommunications, Multilayer PCB Boards are indispensable. They are used in routers, switches, and signal transmission systems that require robust and reliable circuitry to handle vast amounts of data transmission with minimal signal loss.

To conclude, the application occasions and scenarios for Multilayer PCB Boards are diverse and cater to a multitude of sectors that require advanced electronic solutions. The adaptability in layers, precision in design, and variety of surface finishes make them an essential component in the development and operation of high-performance electronic products and systems.



Customization:

Our Multilayer PCB Board offers a range of customization options to meet the needs of various applications. We provide 18 Layers PCBs as part of our extensive selection, which spans from 4-22 layers to accommodate your specific requirements. Each Multilayer PCB is meticulously packed using Vacuum Packing With Carton Box to ensure safe delivery.

The copper thickness on our PCBs can be tailored from 0.5oz to 6oz, depending on the current-carrying capacity and thermal management needs of your project. With advanced Surface Mount Technology capabilities, we ensure that your Multilayer PCBs are equipped for modern electronic component assembly.

Choose the number of layers for your Multilayer PCB Board, ranging from 4 to 22 layers, to achieve the desired electrical performance and physical dimensions. Our team is committed to delivering high-quality, custom PCBs that meet the exacting standards of your industry.



Support and Services:

The Multilayer PCB Board is a high-quality product designed to meet the complex requirements of various electronic applications. Our Product Technical Support and Services team is dedicated to providing comprehensive assistance to ensure the optimal performance of your Multilayer PCB Board. Our services include:

Technical Consultation: Our team of experts offers technical consultations to help you understand the specifications and features of the Multilayer PCB Board, ensuring that it meets your application needs.

Design Support: We offer design support services to assist you in integrating the Multilayer PCB Board into your existing systems or in developing new products. Our team can provide guidance on layout, component placement, and material selection.

Product Customization: If you require a customized Multilayer PCB Board to fit specific requirements, our team can work with you to modify the design and functionality according to your specifications.

Installation Assistance: To help you get started, we offer installation assistance, including step-by-step guidance on how to correctly set up the Multilayer PCB Board within your application to ensure proper operation.

Troubleshooting: In the event of any issues, our troubleshooting support is available to diagnose and resolve problems quickly, minimizing downtime and ensuring continuous operation.

Quality Assurance: We are committed to the highest quality standards and offer assistance in ensuring that your Multilayer PCB Board maintains its performance throughout its lifecycle.

Software Updates: We provide regular software updates for any components of the Multilayer PCB Board that require firmware or other software, ensuring that your product stays up-to-date with the latest features and improvements.

Training: To empower your team to make the most of the Multilayer PCB Board, we offer training sessions that cover operation, maintenance, and best practices for long-term success.

Please note that while we strive to offer comprehensive support for our Multilayer PCB Board, our services do not cover physical repairs or in-person maintenance. Should you require such services, we recommend contacting a certified professional or an authorized service center.
