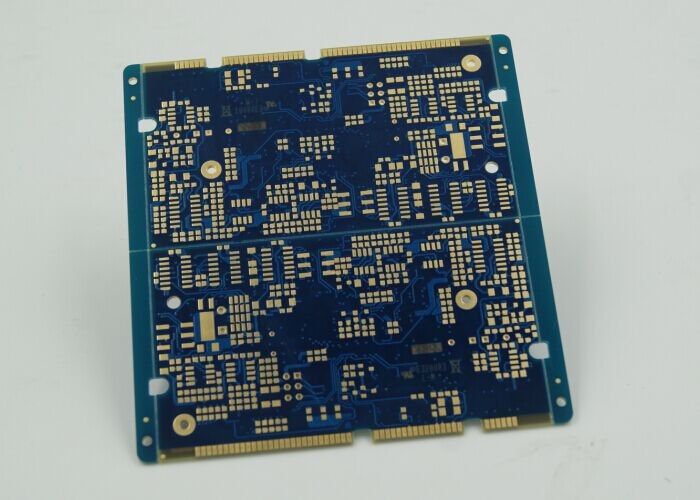

HASL Gold Finger Multilayer PCB Board 10 Layer FR4 PCB Board with Gold Conductor Fingers IC Leads
The Multilayer Printed Circuit Board (PCB) is a technological marvel, expertly crafted to meet the rigorous demands of modern electronics. With the capability to integrate multiple circuit layers into a single board, these sophisticated components are the backbone of many advanced electronic applications. The Multilayer PCB Board product boasts a thickness range from 0.2mm to 6.0mm, providing options for a variety of uses—from the slimmest portable devices to robust industrial machinery.
One of the standout attributes of the Multilayer Circuit Board is its versatility in size. Catering to diverse requirements, these PCBs are not confined to standard dimensions, allowing for customized solutions tailored to the specific needs of any project. Whether it's a compact gadget or a large-scale system, the Multilayer PCB can be designed to fit precisely within the designated space, ensuring optimal performance and integration.
Our service offering extends beyond mere manufacturing; we provide a comprehensive One-stop Service OEM experience. This means that from the initial concept and design phase, through to the final delivery of the product, our team is fully equipped to handle all aspects of the PCB production process. Clients can expect a seamless, efficient, and tailored service that addresses all their electronic circuit requirements without the need to engage multiple vendors.
The surface finish of a PCB is crucial, as it protects the copper from oxidation and improves the solderability of the board. Our Multilayer PCBs come with a variety of surface finish options, including HASL (Hot Air Solder Leveling), Immersion Gold, Immersion Tin, Immersion Silver, Gold Finger, and OSP (Organic Solderability Preservatives). Each of these surface finishes offers its own benefits, such as enhanced durability, improved electrical performance, or increased resistance to corrosion, allowing clients to select the most appropriate finish for their specific application.
When it comes to packaging and shipping, we understand that the integrity of the PCBs during transit is paramount. That's why we employ Vacuum Packing With Carton Box, ensuring that each Multilayer Circuit Board reaches its destination in pristine condition. The vacuum packing method removes air and prevents moisture from compromising the boards, while the sturdy carton box provides a solid layer of protection against physical damage. This meticulous approach to packaging reflects our commitment to quality and customer satisfaction.
14 Layers PCBs are among the most complex configurations available in our product line. These boards are engineered for high-density applications where space is at a premium and functionality cannot be compromised. Each of the 14 layers is precisely aligned and laminated to achieve the desired electrical characteristics and mechanical stability. The use of multiple layers also allows for greater flexibility in design, accommodating more components and a higher level of interconnectivity, which is essential for sophisticated electronic systems.
In conclusion, our Multilayer PCB Board product stands as an exemplary representation of modern circuit technology. With the flexibility in thickness and size, comprehensive OEM service, a range of surface finishes, and secure vacuum packing, clients are assured of a product that not only meets but exceeds their expectations. Whether it's for consumer electronics, automotive, telecommunications, or aerospace industries, our Multilayer Printed Circuit Board is the foundation upon which reliable and high-performance electronic devices are built.
Parameter | Description |
---|---|
Number Of Layers | 4-22 Layers |
Copper Thickness | 0.5oz-6oz |
Thickness | 0.2mm-6.0mm |
Surface | HASL, Immersion Gold, Immersion Tin, Immersion Silver, Gold Finger, OSP |
Service | One-stop Service OEM |
Surface Mount Technology | Yes |
Size | / |
Layers | 4-22 Layer |
Glass Epoxy | RO4003C+ Tg170 FR-4 |
Min. Hole Size | 0.2mm |
The Multilayer Printed Circuit Board (PCB) is a technological marvel that has revolutionized the electronics industry. With the capability of having 4 to 22 layers, these PCBs are designed to meet the needs of complex electronic circuitry in a compact form. The applications and scenarios for a Multilayer PCB are vast and varied, encompassing a range of industries and technologies where high-density interconnections are necessary.
One of the prime application occasions for a Multilayer PCB is in the field of telecommunications. The industry demands high-speed transmission and reliability, which is where the Multilayer PWB (Printed Wiring Board) excels. With a minimum hole size of 0.2mm, these boards can accommodate dense component placements and fine pitch connections, essential for the intricate workings of smartphones, routers, and switching systems.
In the realm of computer systems, the Multilayer PWB is indispensable. Whether it's for laptops, desktops, or high-performance servers, the complexity of these systems requires multiple layers to support processors, memory, and various input/output peripherals. The thickness range of 0.2mm to 6.0mm allows these PCBs to be tailored for specific applications, from ultra-thin laptops to robust industrial computers.
Consumer electronics also benefit greatly from the use of Multilayer Printed Circuit Boards. High-end audio and video equipment, digital cameras, and gaming consoles require the high copper weight of up to 12OZ to ensure low resistance and high conductivity for power and signal paths. This attribute ensures that devices are not only reliable but also provide the high performance that consumers demand.
Automotive and aerospace industries are increasingly relying on Multilayer PCBs. The complexity of electronic systems in modern vehicles, aircraft, and spacecraft necessitates the use of boards that can withstand extreme conditions and provide reliable performance. Multilayer PCBs in these applications often undergo rigorous testing to meet the strict standards required for safety and durability.
Finally, in the medical field, Multilayer PCBs are used in a variety of devices such as scanners, monitors, and advanced diagnostic equipment. The precision and reliability of a Multilayer PWB are critical in ensuring that these devices function accurately and efficiently, which is essential for patient care and medical research.
In summary, the versatility of Multilayer PCBs makes them suitable for a plethora of applications across different industries. The combination of multiple layers, small hole sizes, varying thicknesses, and heavy copper weight allows these boards to be customized for specific applications, ensuring that they meet the high standards required for each unique scenario.
Our Multilayer PCB customization services cater to a variety of specifications, ensuring that your Multilayer PWB meets the highest standards. We provide an 18 Layers PCBs product that features the robust Glass Epoxy composition of RO4003C+ Tg170 FR-4, offering excellent thermal resistance and mechanical strength.
The Copper Weight we offer is a substantial 12OZ, ensuring superior electrical conductivity and durability for your high-power applications. Our commitment to quality is demonstrated through our One-stop Service OEM, simplifying the production process and ensuring a seamless experience from design to delivery.
In addition to these features, we also incorporate advanced Surface Mount Technology, enabling precise and reliable assembly of your electronic components. While we have standard sizes available, we can also provide custom sizes to meet your specific needs. Connect with us to discuss the size requirements for your customized Multilayer PCB solution.
