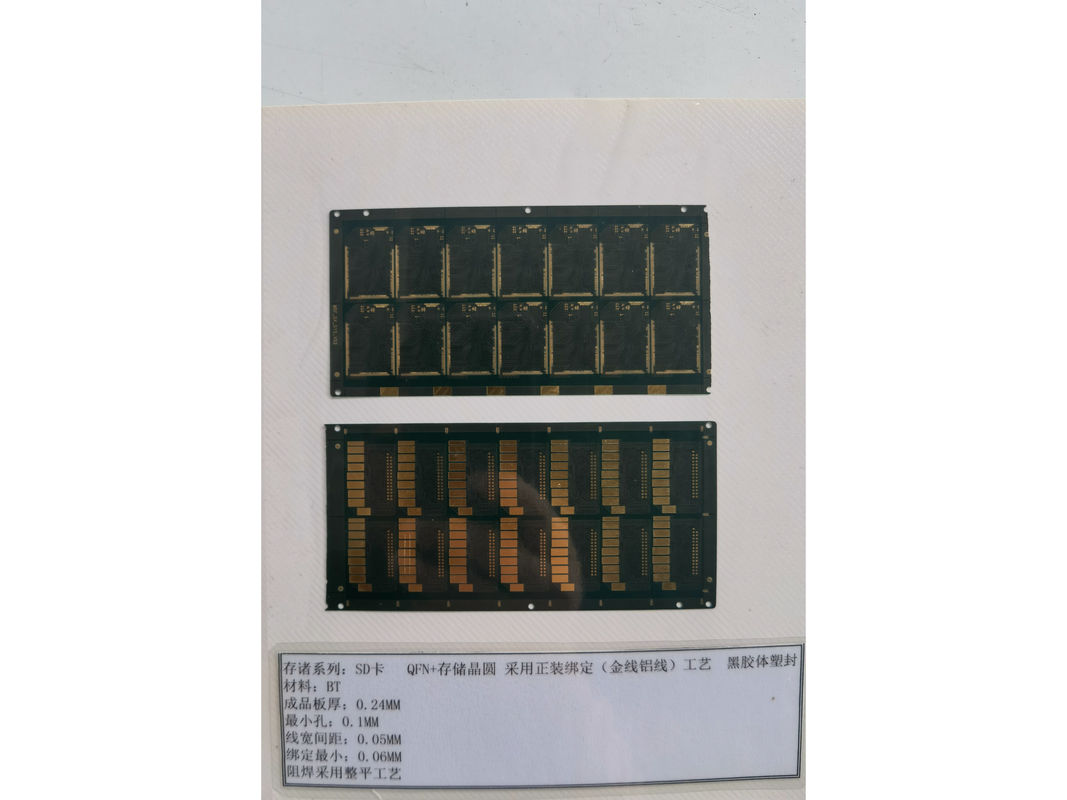

Immersion Gold Printed Circuit Board Substrate PCB For Electronic Instruments

Immersion Gold Printed Circuit Board Substrate PCB For Electronic Instruments

Immersion Gold Substrate PCB

Electronic instruments Substrate PCB

Immersion Gold Printed Circuit Board Substrate

Contact Us
Request A Quote
Product Details
Solder Mask Color:
Green
Impedance Control:
Yes
Surface Finish:
Immersion Gold
Min. Hole Size:
0.2mm
Application:
Electronic Devices
Material:
ABF
Silkscreen Color:
White
Thickness:
0.2mm
Payment & Shipping Terms
RELATED PRODUCTS
Contact Us
Contact Now
Product Description

Immersion Gold Substrate PCBs with Impedance Control for Electronics

Product Description:

The advent of sophisticated electronics has necessitated the development of equally advanced circuitry solutions. Substrate Like PCBs represent a significant leap in Printed Circuit Board (PCB) technology, offering enhanced performance and miniaturization capabilities. Our premier Substrate-Embedded Circuit Boards are designed to meet the rigorous demands of modern electronic devices, providing a robust platform for a wide range of applications.

Substrate Like PCBs are crafted with the highest quality ABF (Ajinomoto Build-up Film) material. ABF is known for its excellent electrical properties, making it an ideal choice for high-frequency and high-speed applications. The material’s low dielectric constant and low loss tangent ensure that signal integrity is maintained, even in the most demanding circumstances. Our Substrate-based Circuit Boards deliver exceptional performance, thanks to the inherent qualities of ABF which include resistance to high temperatures and chemical stability.

Our commitment to environmental responsibility is evident as these Substrate Like PCBs are RoHS compliant. This means they are manufactured without hazardous substances, thereby ensuring that our products are aligned with global standards for environmental safety and sustainability. The RoHS compliance also demonstrates our dedication to providing products that are not only high in quality but also safe for both consumers and the environment.

These Substrate-Equipped PCBs are meticulously engineered to consist of 2 layers, providing a compact yet powerful solution for complex electronic circuits. The dual-layer design maximizes space without compromising functionality, allowing for a denser layout of components. This is particularly beneficial for devices where space is at a premium, enabling designers to pack more features into a smaller footprint.

One of the most critical features of modern PCBs is the ability to manage signal integrity through Impedance Control. Our Substrate Like PCBs are equipped with precise Impedance Control, ensuring that the electrical characteristics of the board match the requirements of the specific signals it carries. This level of control is essential for the reliable operation of high-speed digital and RF circuits, where even minor deviations can lead to significant performance degradation.

The Substrate Like PCBs boast a minimum hole size of 0.2mm. This feature not only allows for the inclusion of finer components but also contributes to the overall miniaturization of the board. The small hole size is achieved through advanced drilling techniques, ensuring high precision and reliability in the placement and function of vias and through-holes. This attribute is crucial for the creation of densely packed circuits that are characteristic of today's high-performance devices.

Our Substrate-Embedded Circuit Boards are the embodiment of innovation in PCB design. They integrate all these features while maintaining a high level of quality and reliability. The use of ABF material, adherence to RoHS compliance, precision in Impedance Control, and the incorporation of a minuscule hole size, all contribute to a PCB solution that is ready to tackle the challenges of modern electronics. The 2-layer design enables our Substrate Like PCBs to serve a multitude of industries, ranging from consumer electronics to aerospace, where performance and space constraints are of the essence.

In summary, our Substrate Like PCBs stand at the forefront of PCB technology, offering a high-performance, environmentally friendly, and space-efficient solution for today's most demanding electronic applications. By choosing our Substrate-based Circuit Boards, customers are assured of a product that delivers reliability, precision, and innovation in every layer.



Features:

  • Product Name: Substrate Like PCBs
  • Min. Hole Size: 0.2mm
  • Surface Finish: Immersion Gold
  • Material: ABF
  • Thickness: 0.2mm
  • Rohs Compliance: Yes
  • Also known as Substrate-Equipped PCBs
  • Integrated Circuitry Boards with Substrate Components
  • PCBs featuring a high-precision Substrate Layer


Technical Parameters:

Attribute Details
Application Electronic Devices
Min. Hole Size 0.2mm
Surface Finish Immersion Gold
Material ABF
Lead Time 5-7 Days
Min. Trace Width/Spacing 0.1mm
Rohs Compliance Yes
Silkscreen Color White
Solder Mask Color Green
Copper Weight 1oz


Applications:

Substrate-Type Printed Circuit Boards (PCBs) are a critical component in a vast array of electronic devices, serving as the backbone for mounting and interconnecting electronic components. PCBs with substrate material, particularly made from ABF (Ajinomoto Build-up Film), offer high performance and reliability, which is essential in modern electronic applications. The ABF material is known for its excellent dielectric properties and its ability to support fine circuit patterns, making it an ideal choice for high-density applications. With a thickness of just 0.2mm, these PCBs provide a compact solution for electronic devices where space is at a premium.

The application occasions and scenarios for Substrate-Equipped PCBs are diverse, encompassing a wide range of industries including consumer electronics, medical devices, automotive systems, and aerospace. In consumer electronics, devices such as smartphones, tablets, and laptops require miniaturized yet powerful PCBs that can handle high-speed signal transmission without interference, which is where impedance control comes into play. The presence of impedance control in these PCBs ensures signal integrity for high-speed data communications, a critical feature in today's connected devices.

In the medical field, substrate-type PCBs are used in sophisticated diagnostic equipment, wearable health monitors, and life-supporting devices. The need for reliability and precision in medical devices means that the quality of the Circuit Boards with Substrate Material is of utmost importance. The green solder mask that is typically applied to these PCBs not only provides a recognizable aesthetic but also acts as a protective layer against contamination, ensuring the longevity and safety of the medical devices.

The automotive industry benefits from these PCBs in systems such as engine controls, infotainment, and safety sensors. The harsh conditions experienced by automotive electronics, including temperature extremes and vibrations, require PCBs that are robust and can maintain their performance over time. Likewise, in aerospace applications, the substrate-equipped PCBs must withstand extreme environmental conditions and provide reliable functionality in critical systems such as navigation, communication, and flight control systems.

In conclusion, substrate-type printed circuit boards are indispensable in the realm of electronic devices, providing the necessary foundation for a multitude of applications. The use of ABF material, precise impedance control, and a suitable thickness of 0.2mm, combined with a protective green solder mask, ensures that these PCBs meet the stringent requirements of various high-tech industries. Whether in daily consumer gadgets or specialized industrial equipment, substrate-equipped PCBs are the unsung heroes that enable the functionality and advancement of electronic technology.



Customization:

Experience the precision of Substrate-Embedded Circuit Boards, tailored to meet your specific needs. With a swift lead time of 5-7 days, we ensure your project stays on track without compromising quality.

Our Circuit Boards with Substrate Material are constructed with a robust 1oz copper weight, providing reliable conductivity for your electronic applications. The 0.2mm thickness of the boards allows for a compact and efficient design, perfect for modern electronics.

The use of high-quality ABF material ensures that our Substrate-Embedded Circuit Boards offer superior performance and durability. Additionally, we cater to intricate designs with a minimum hole size of 0.2mm, allowing for precise component placement and connectivity.



Support and Services:

Our Substrate Like PCBs (SLP) product line is supported by a comprehensive range of technical support and services to ensure our customers achieve the best possible performance from our advanced circuitry solutions. Our services include detailed product documentation, application notes, and design guidelines to facilitate your design process. Additionally, we offer troubleshooting assistance and technical advice to address any challenges you may encounter during the integration of our SLP products into your applications. Our team of experts is dedicated to providing support throughout the entire product lifecycle, from design conception to end-of-life. Please note that specific support services may vary by region and product complexity.
