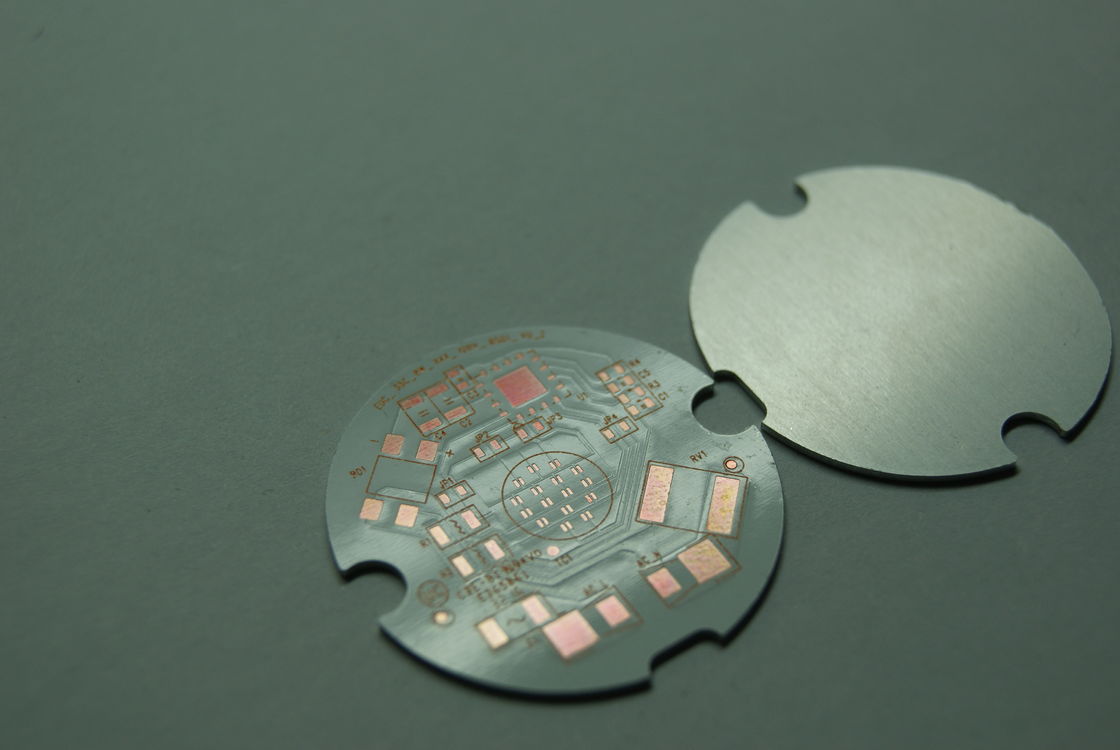

2-16 Layers Ventec Metal PCB in Green Solder Mask Color for Performance

Product Description:

The IMS PCB product offered by our company is a versatile and high-quality option for various electronic applications. Featuring a minimum silkscreen bridge of 0.1mm, this product ensures precise and detailed printing for your designs. With a layer range of 2 to 16, the IMS PCB provides flexibility to accommodate different project requirements.

Constructed with FR-4 material, the IMS PCB guarantees excellent thermal and electrical properties, making it ideal for demanding applications where reliability is crucial. Whether you are working on Begquist metal Core PCBs or Polytronics PCBs, our IMS PCB can meet your needs with its superior performance.

When it comes to customization, our IMS PCB product offers a variety of silkscreen color options including white, black, and yellow. This allows you to choose the color that best complements your design or branding requirements, adding a professional touch to your final product.

Furthermore, the PCB thickness range of 0.6mm to 6.0mm provides you with the flexibility to select the most suitable thickness for your specific application. Whether you require a thinner PCB for space-constrained designs or a thicker PCB for enhanced durability, our IMS PCB can be tailored to meet your exact specifications.

In summary, our IMS PCB product is a reliable and customizable solution for a wide range of electronic projects. With its precise silkscreen capabilities, versatile layer options, high-quality FR-4 material, various silkscreen color choices, and customizable thickness range, our IMS PCB is the perfect choice for your Begquist metal Core PCB or Polytronics PCB applications.

Features:

• Product Name: IMS PCB
• Silkscreen Color: White, Black, Yellow
• Solder Mask Color: Green, Red, Blue, Black
• Impedance Control: Yes
• Min. Silkscreen Bridge: 0.1mm
• Surface Finishing: OSP/ ENIG/ Im Ag/ HASL/ Golden Finger

Technical Parameters:

Applications:

IMS PCB, also known as Insulated Metal Substrate PCB, is a type of copper clad laminate PCB that offers excellent thermal conductivity and heat dissipation properties. With a thickness range of 0.6-6.0mm and layer options from 2 to 16, IMS PCBs are ideal for various applications that require efficient heat management and reliable performance.

One of the key features of IMS PCBs is impedance control, which ensures signal integrity and stability in high-frequency applications. This makes IMS PCBs suitable for use in industries such as telecommunications, automotive, aerospace, and medical devices.

The white, black, and yellow silkscreen options available for IMS PCBs provide flexibility in labeling and branding, making them suitable for products where visual aesthetics are important.

IMS PCBs find wide application in scenarios where thermal management is critical, such as LED lighting, power supplies, motor control, and automotive electronics. The excellent heat dissipation properties of IMS PCBs make them ideal for high-power applications that require reliable performance under challenging thermal conditions.

For applications that require superior thermal performance, Ventec metal PCBs and Bergquist metal core PCBs are popular choices. These specialized IMS PCBs offer enhanced thermal conductivity and reliability, making them suitable for demanding applications in industries such as aerospace, defense, and power electronics.

In summary, IMS PCBs with impedance control, copper clad laminate construction, and a range of silkscreen options are versatile solutions for a wide range of product applications and scenarios that require efficient heat management, reliable performance, and signal integrity.

Customization:

Product Customization Services for the PTTC metal pcb IMS PCB:

Tensile Strength: Excellent, >300Mpa, 1.2~1.6N/mm

Service: PCB Fabrication

Solder Mask Color: Green, Red, Blue, Black

Layers: 2-16

Withstand Voltage: >3KV

High thermal conductivity IMS PCB and ventec metal pcb available.

Support and Services:

The IMS PCB product offers comprehensive Product Technical Support and Services to assist customers with any issues or questions they may encounter. Our dedicated support team is readily available to provide guidance on product installation, troubleshooting, and maintenance. Additionally, we offer training sessions to help users optimize their experience with the IMS PCB product. Our goal is to ensure that customers receive the highest level of support to maximize their satisfaction and product performance.
