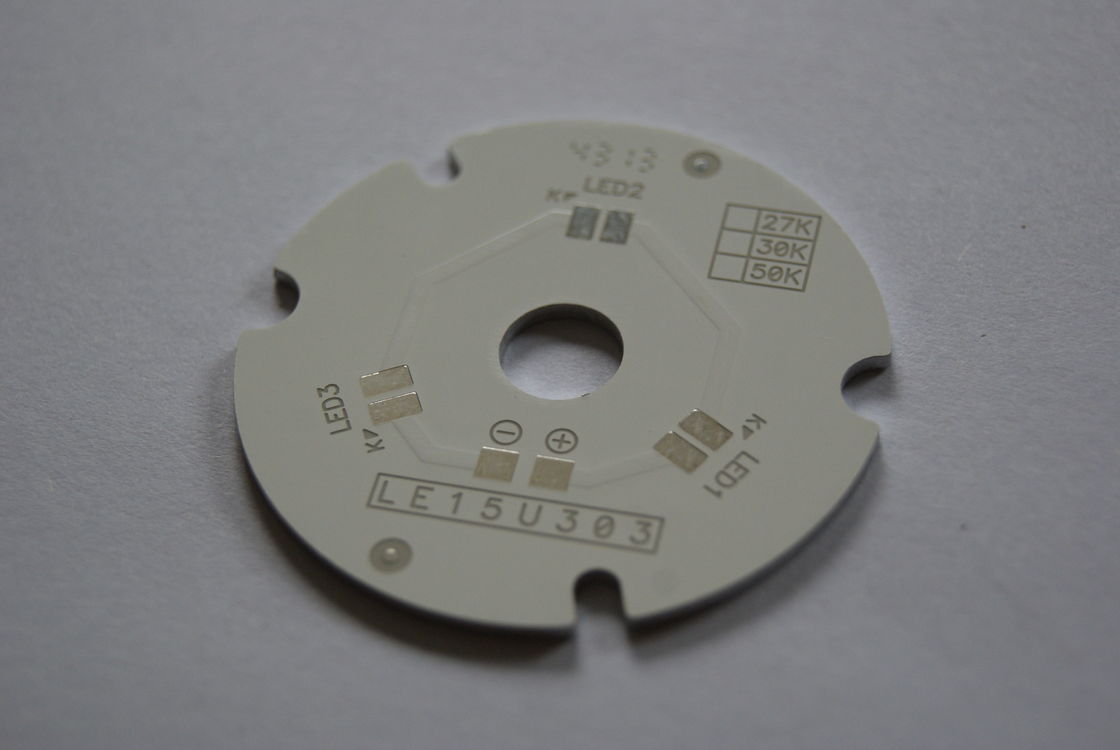

Customized IMS PCB with Insulation Sheet and Copper Thickness 0.5-6.0oz in Clients Required Solder Mask Color

Product Description:

The IMS PCB product offered by our company is a high-quality solution designed for various electronic applications. IMS PCB, also known as insulated metal substrate PCB, is known for its excellent thermal conductivity properties, making it ideal for applications requiring efficient heat dissipation.

Key Product Attributes:

• PCB Thickness: Ranging from 0.6mm to 6.0mm, our IMS PCBs are available in various thickness options to suit different application requirements.
• ISO Certification: Our IMS PCBs are manufactured in compliance with international quality standards. We hold ISO certifications including ISO 9001:2015, ISO 14001:2015, and ISO 13485:2016, ensuring the highest quality of our products.
• Solder Mask Color: We offer customization options for the solder mask color based on clients' requirements, providing flexibility in design and aesthetics.
• Silkscreen: The silkscreen color options for our IMS PCBs include white, black, and yellow, allowing for clear and easy component identification during assembly.
• Service: Our IMS PCB service includes PCB fabrication processes that meet industry standards, ensuring reliable and consistent performance.

Our IMS PCBs are manufactured using high-quality materials, with a focus on providing excellent thermal management capabilities. The use of Ventec PCB materials further enhances the thermal conductivity of the PCB, making it suitable for demanding applications where heat dissipation is crucial.

Whether you require IMS PCBs for LED lighting, automotive electronics, power supplies, or other high-heat applications, our products are designed to meet your specific needs. The combination of high thermal conductivity, customization options, and adherence to stringent quality standards makes our IMS PCBs a reliable choice for your electronic projects.

Features:

• Product Name: IMS PCB
• Copper Thickness: 0.5-6.0oz
• Type: Insulation Sheet, PCB Base Board
• Min. Line Width/Spacing: 0.075/0.075mm
• Silkscreen: White, Black, Yellow
• Materials: Ventec, Polytronics, Begquist

Technical Parameters:

Applications:

IMS PCB (Insulated Metal Substrate PCB) is a type of high thermal conductivity metal PCB that is used in various electronic applications due to its excellent heat dissipation properties. The product is suitable for a wide range of occasions and scenarios where efficient thermal management is essential.

One common application for IMS PCB is in LED lighting fixtures, where the high thermal conductivity metal PCB helps in dissipating the heat generated by the LEDs, thus improving the overall performance and lifespan of the lighting system. Another popular use case for IMS PCB is in power supply units, where the efficient heat dissipation capabilities of the PCB ensure reliable operation even under high load conditions.

With its ability to efficiently transfer heat away from components, IMS PCB is also ideal for use in automotive electronics, such as in electric vehicle battery management systems. The high thermal conductivity metal PCB helps in maintaining optimal operating temperatures for critical components, ensuring the safety and longevity of the vehicle's electrical systems.

Manufactured with a single layer design, IMS PCB offers flexibility in thickness ranging from 0.6mm to 6.0mm, making it suitable for various compact electronic devices where space is limited. The product is available with different surface finish options including HASL, ENIG, OSP, and Immersion Silver, catering to different requirements and preferences of clients.

IMS PCB is particularly well-suited for applications that require high thermal conductivity, such as power electronics, motor drives, and high-power LED modules. The use of Begquist metal core PCB technology further enhances the thermal performance of the PCB, making it a reliable choice for demanding thermal management applications.

Customization:

Product Customization Services for the IMS PCB product:

PCB thickness: 0.6-6.0MM

Thermal Conductivity: 0.5/1/2/3/5/8 W,1.0w,>=1.0W/mK

Silkscreen: White, Black, Yellow

Withstand voltage: >3KV

ISO Certification: ISO 9001:2015, ISO 14001:2015, ISO 13485:2016

Support and Services:

Our Product Technical Support and Services for the IMS PCB product include:

- Troubleshooting assistance for any issues related to the IMS PCB

- Guidance on installation, setup, and configuration of the IMS PCB

- Software updates and patches to ensure optimal performance

- Training resources and documentation for using the IMS PCB effectively

- Warranty support and repair services for any hardware issues
