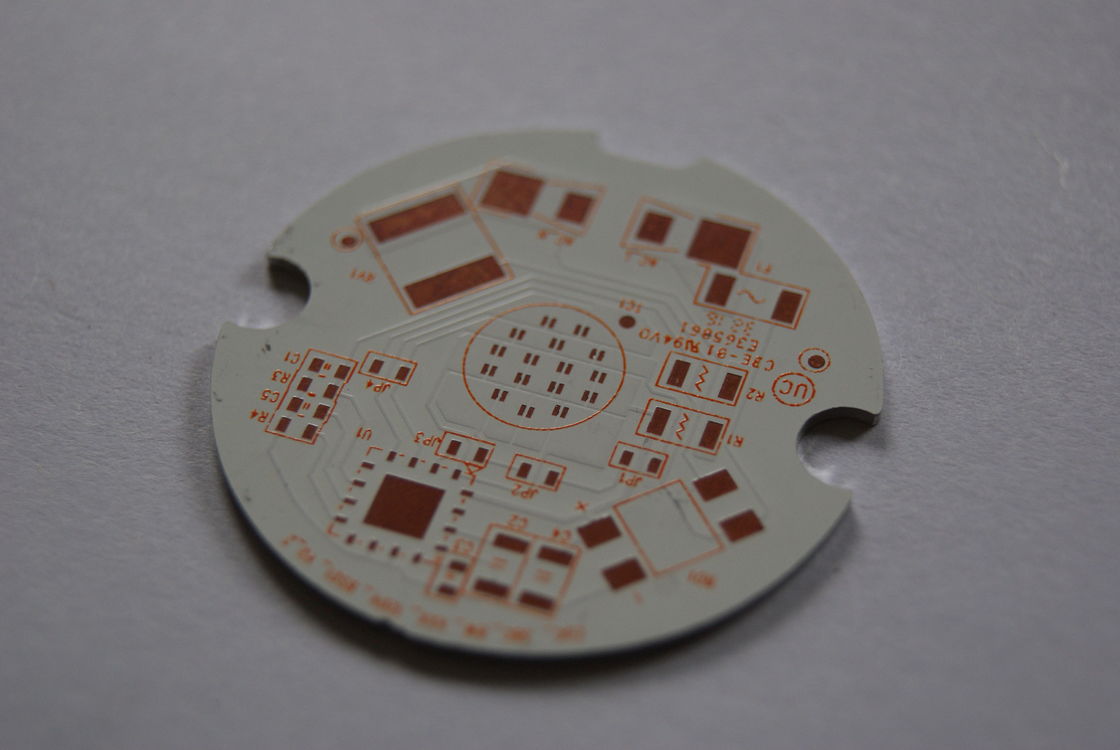

White Yellow Immersion Silver PCB Base Board 0.5-6.0oz Copper IMS Circuit Board

White Yellow Immersion Silver PCB Base Board 0.5-6.0oz Copper IMS Circuit Board

Contact Us
Request A Quote
Product Details
Silkscreen:
White, Black, Yellow
Surface Finish:
HASL, ENIG, OSP, Immersion Silver
Sample:
Avaliable
Copper Thickness:
0.5-6.0oz
Service:
PCB Fabrication
Type:
Insulation Sheet,PCB Base Board
ISO Certification:
ISO 9001:2015, ISO 14001:2015, ISO 13485:2016
Number Of Layers:
1 Layer Printed Circuit Board
Payment & Shipping Terms
RELATED PRODUCTS
Contact Us
Product Description

Product Description:

The IMS PCB (Insulated Metal Substrate Printed Circuit Board) is an advanced solution for high-power electronic applications where effective heat dissipation is crucial. Our IMS PCB product is designed with precision to cater to a range of thermal management needs. With a PCB thickness ranging from 0.6-6.0MM, it is versatile enough to be used in various industries, including automotive, LED lighting, and high-power electronics.

At the heart of our IMS PCB product is the choice of materials. We partner with industry leaders Ventec, Polytronics, and Bergquist to provide substrates that ensure robustness and high thermal performance. These materials are fundamental in the creation of a PTTC metal pcb, which stands for Plated Through Thermal Conductivity metal PCB, a type that is known for its exceptional ability to conduct heat away from hotspots, thereby enhancing the overall lifespan and reliability of the devices they are used in.

Thermal conductivity is a pivotal attribute of our IMS PCBs. We offer a range of options from 0.5W/mK to a high thermal conductivity metal pcb with 8W/mK. This variety ensures that, whether your application needs moderate or extreme heat dissipation, our PCBs can be tailored accordingly. For those applications that require a well-balanced solution, we also offer a 1.0w/mK thermal conductivity option. In scenarios where thermal efficiency is paramount, our >=1.0W/mK options are the go-to choice. It's these features that make our PCBs stand out as high thermal conductivity metal pcb solutions.

The aesthetics and functionality are further customizable through our silkscreen options, available in white, black, and yellow. The silkscreen is not only a visual layer but also an informative one, containing vital details about the components and their placements. It aids in the ease of assembly and can be tailored to match the aesthetic requirements of the final product.

Equally important is the solder mask, which provides a protective layer over the copper traces of the PCB. We understand that our clients have diverse needs, and as such, we offer the solder mask in various colors as required by the client. The solder mask plays a critical role in preventing solder bridging during assembly and also adds to the visual appeal of the PCB.

The combination of these features makes our IMS PCBs an excellent choice for any industry requiring high thermal conductivity metal pcb with reliable performance. They are designed to endure challenging environments and are capable of supporting devices that generate significant amounts of heat. The adaptability in thermal conductivity, coupled with a choice of high-quality materials and customizable aesthetic options, positions our IMS PCBs as a top-tier choice for thermal management in electronic components.

We take pride in our manufacturing process, which adheres to strict quality control standards to ensure that each IMS PCB is produced with the highest level of precision and quality. Our commitment to excellence and customer satisfaction is unwavering, and we strive to provide innovative solutions that meet the evolving needs of the electronics industry. With our IMS PCBs, you can expect a product that not only meets but exceeds the requirements for high thermal conductivity applications.



Features:

  • Product Name: IMS PCB
  • Surface Finishing: CUSTOM
  • Withstand Voltage: >3KV
  • ISO Certification: ISO 9001:2015, ISO 14001:2015, ISO 13485:2016
  • Materials: Ventec, Polytronics, Bergquist
  • PCB Thickness: 0.6-6.0MM
  • PTTC Metal PCB
  • Ventec PCB
  • PTTC Metal PCB


Technical Parameters:

Attribute Detail
Type Insulation Sheet, PCB Base Board
Sample Available
Surface Finish HASL, ENIG, OSP, Immersion Silver
Service PCB Fabrication
Silkscreen White, Black, Yellow
Number Of Layers 1 Layer Printed Circuit Board
Thermal Conductivity 0.5/1/2/3/5/8 W/mK, 1.0w, >=1.0W/mK
Solder Mask Color Clients Required
ISO Certification ISO 9001:2015, ISO 14001:2015, ISO 13485:2016
PCB thickness 0.6-6.0MM


Applications:

The high thermal conductivity IMS PCB (Insulated Metal Substrate Printed Circuit Board) is an innovative solution designed for applications that require efficient heat dissipation. These PCBs are particularly beneficial in situations where electronic components generate significant amounts of heat during operation. The IMS PCB product, crafted by Polytronics PCBs, ensures that the heat is effectively channeled away from critical components, thereby enhancing performance and reliability.

One of the primary application occasions for IMS PCBs is in LED lighting systems. These systems often require boards that can handle high temperatures and ensure the longevity of the LEDs. The ventec pcb, known for its superior heat management, is integral in preventing overheating and potential system failures in these scenarios. This makes the IMS PCB an ideal choice for manufacturers of both commercial and residential LED lighting products.

Another scenario where the IMS PCB shines is in the realm of high-power electronics, such as power converters and inverters. These applications demand materials that can withstand high operational temperatures without compromising the integrity of the circuit. The Polytronics PCBs, with their high thermal conductivity, are perfectly suited to meet these stringent requirements.

The IMS PCB is also commonly used in automotive applications, particularly in power controllers for electric vehicles. The automotive industry requires components that can operate reliably in a wide range of temperatures and conditions. The robust nature of the IMS PCBs, with their customizable solder mask color to meet clients' requirements, provides the necessary durability and performance for automotive electronics.

Furthermore, the IMS PCB is available with various surface finishes such as HASL, ENIG, OSP, and Immersion Silver, offering flexibility in terms of cost and performance. This versatility makes it an attractive option for a broad spectrum of industries, including consumer electronics, where heat management is crucial for the longevity and functionality of devices.

The product also offers a white, black, or yellow silkscreen option, which not only provides a clear and legible marking system for component identification but also allows for aesthetic customization to match the branding of the device it will be used in. Whether it's a single-layer board for a simple application or a more complex assembly, the availability of samples ensures that clients can test and validate the IMS PCB's performance before committing to a full production run.

In summary, the high thermal conductivity IMS PCB from Polytronics PCBs is a versatile and reliable solution for any application that demands efficient heat management. From LED lighting to power electronics, automotive systems to consumer devices, the ventec pcb stands out as an essential component in enhancing product performance and longevity.



Customization:

At our company, we specialize in providing top-notch Product Customization Services for the IMS PCB product, tailored to meet your specific needs. Our Service includes PCB Fabrication that incorporates the use of high-quality materials to ensure the durability and efficiency of your PCBs.

We offer various Type options including Insulation Sheet and PCB Base Board, designed for applications that require robust thermal management. For those looking for a High thermal conductivity IMS PCB , we provide options with Thermal Conductivity ratings ranging from 0.5 W/mK to 8 W/mK, including specialized ratings of 1.0w and >=1.0W/mK to handle high-performance requirements.

Our customization extends to the Silkscreen options where you can choose between White, Black, or Yellow to match your branding or visibility needs. In addition, as a nod to the renowned ventec pcb , we ensure that your boards are crafted to the highest standards.

To complete your custom PCB, we offer Surface Finishing services that are entirely CUSTOM, allowing for a unique and personalized touch to your boards. Whether you're in need of a PTTC metal pcb or any other high thermal conductivity solutions, our team is equipped to deliver exceptional quality and performance.



Support and Services:

Our IMS PCB product comes with comprehensive technical support and services designed to ensure that our customers can maximize the efficiency and reliability of their applications. Our support includes detailed product documentation, a resource library with application notes, and FAQs to assist with self-service troubleshooting. For further technical guidance, customers have access to our product forums where they can engage with a community of experts and peers. Additionally, we offer regular firmware and software updates to enhance product performance and introduce new features.

For more complex queries or issues that cannot be resolved through our self-service resources, we provide direct support through a ticketing system. Customers can submit their technical questions or issues, and our team of skilled technicians will provide personalized assistance. To ensure the highest level of service, our support team is continuously trained on the latest advancements in IMS PCB technology and best practices in the field.

Our services also include optional on-site support and training for customers who require hands-on assistance. This can be particularly beneficial during the installation process or when upgrading systems. Additionally, we offer design review services to help optimize your PCB layout for thermal management and efficiency before manufacturing, reducing the risk of issues post-production.

We are committed to delivering exceptional support and services to guarantee that our IMS PCB products operate to the highest standards and meet our customers' needs. Our team is dedicated to your success and is always here to help you make the most of your IMS PCB technology.
